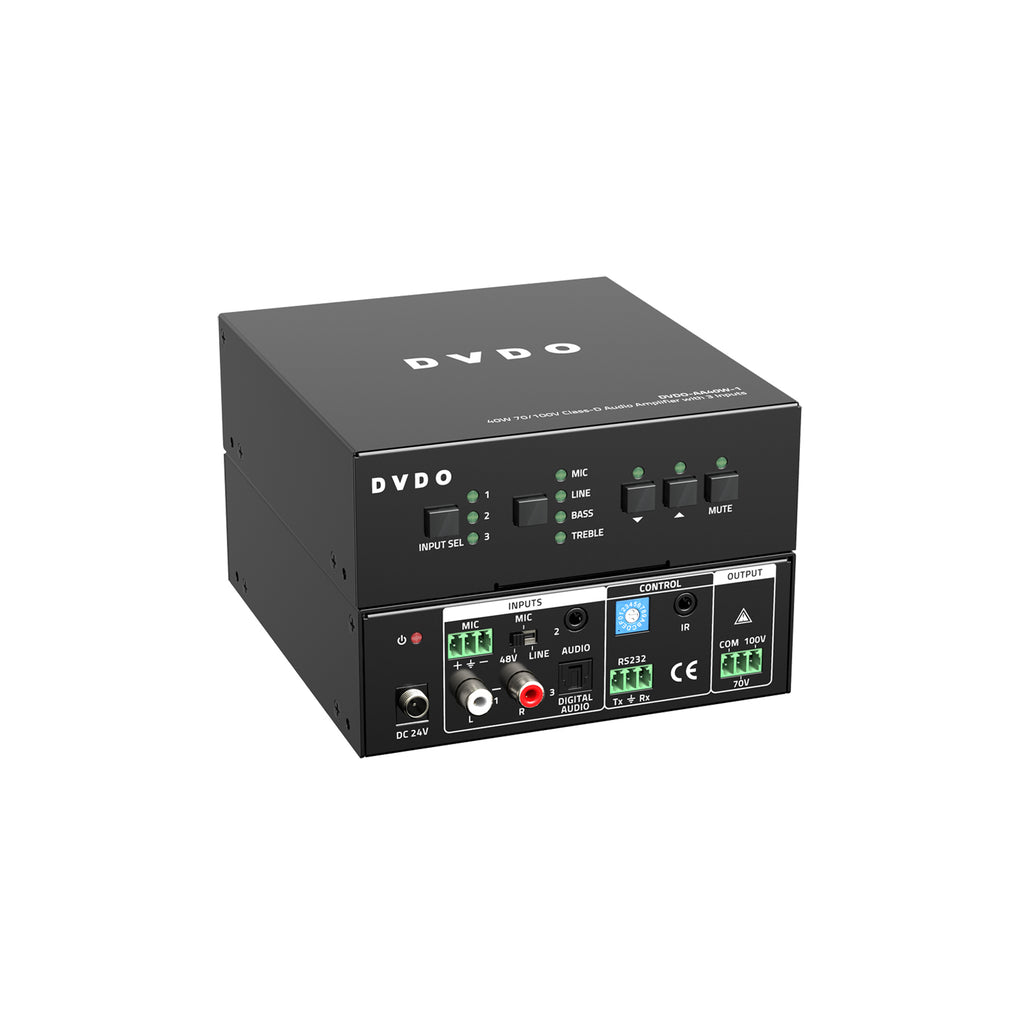

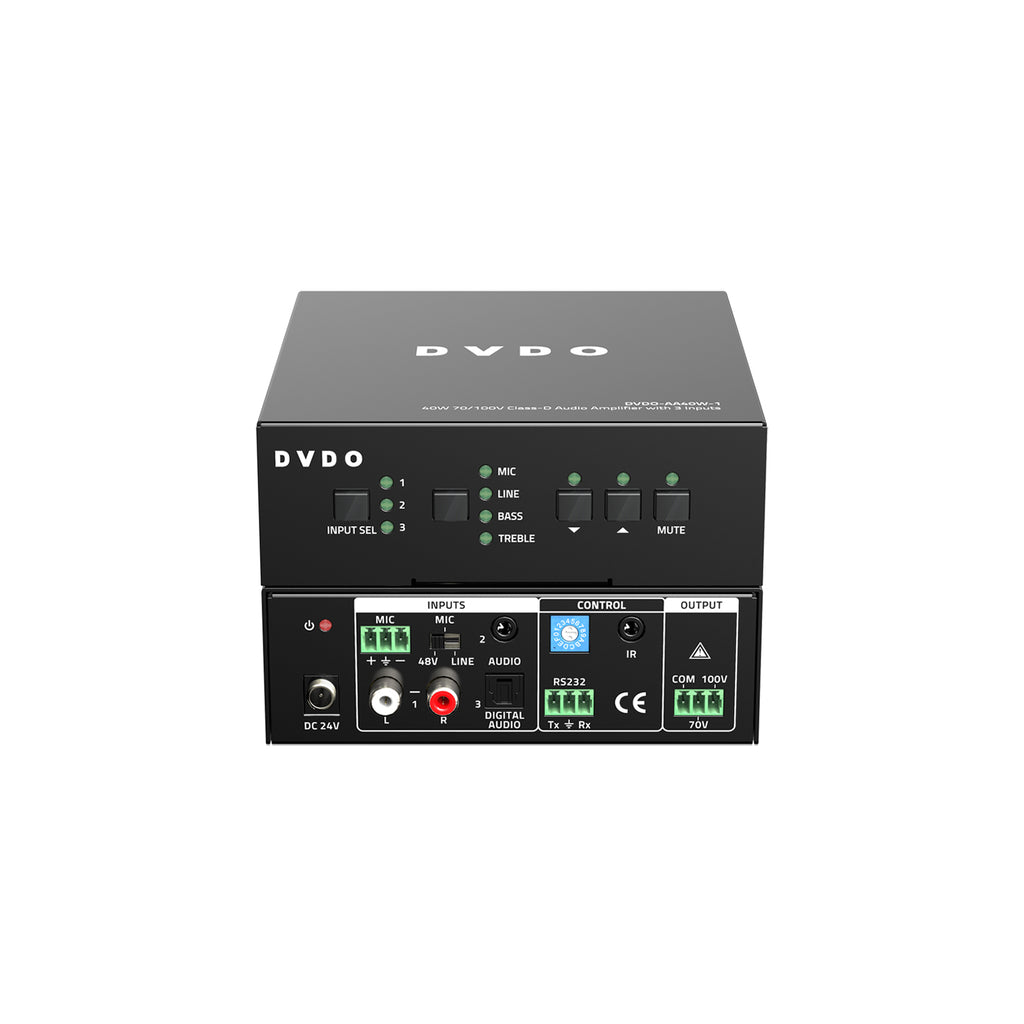

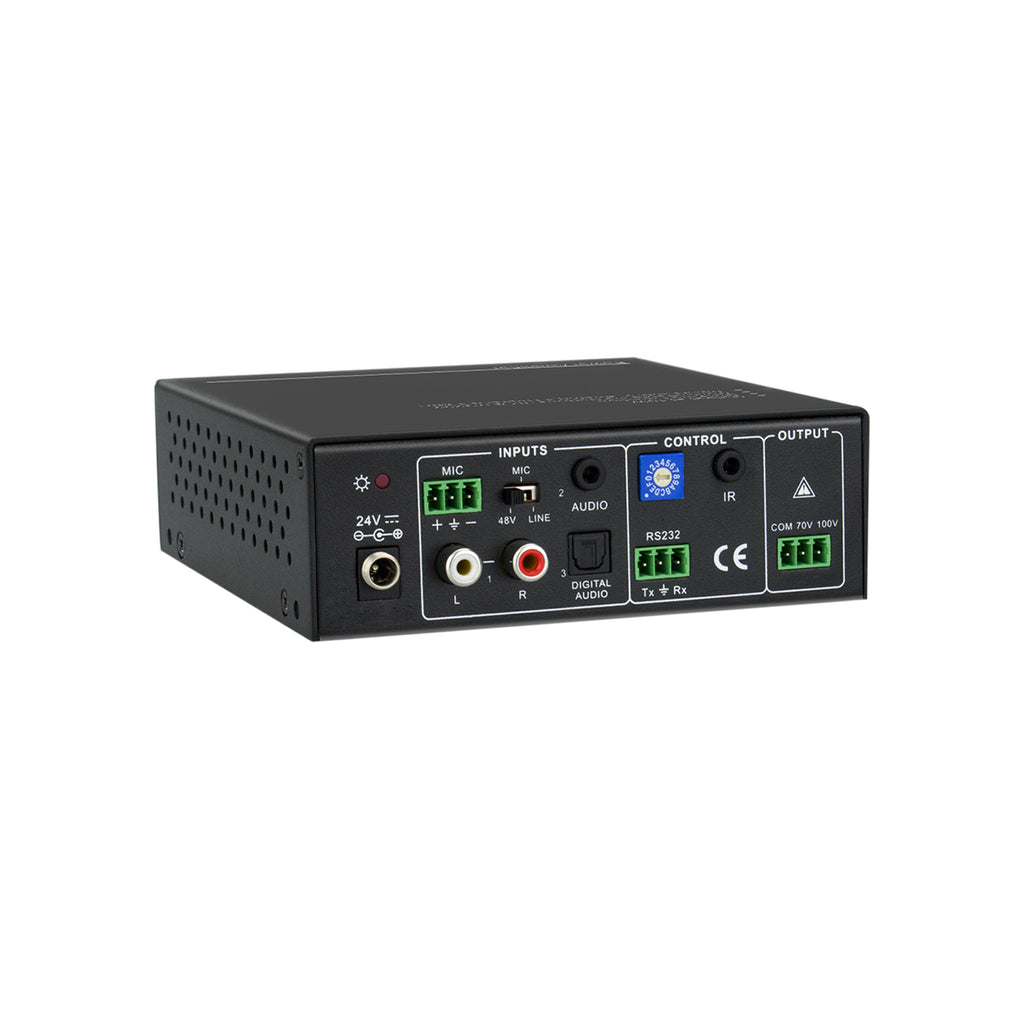

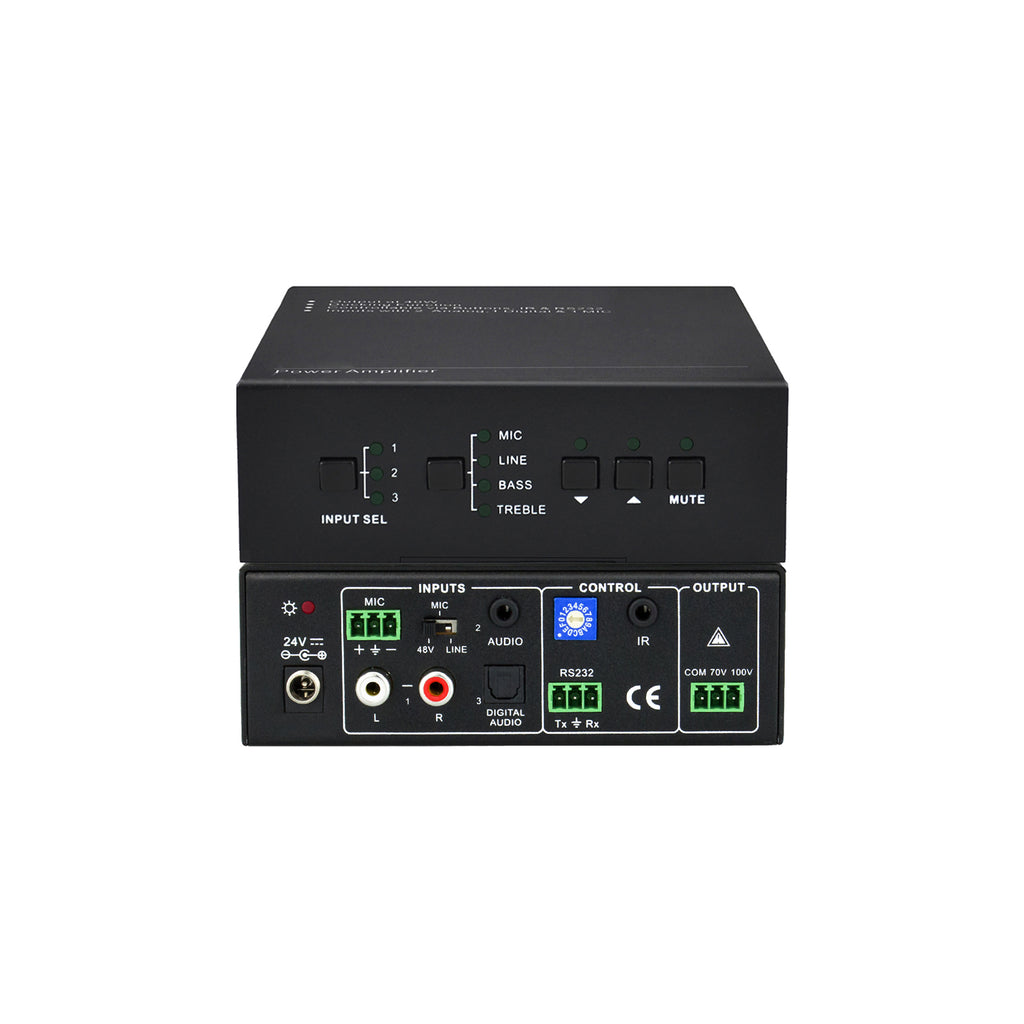

DVDO-AA40W-1 is a 40W Class-D power amplifier with selectable 70V or 100V output. It is ideal for small to medium-sized AV environments, including classrooms, meeting rooms, small venues, bars, restaurants, and digital signage systems.
It features three selectable audio inputs including two stereo inputs (one 3.5 mm line-in jack and one pair of RCA L/R inputs) and one digital input. It also features one balanced MIC input.
It integrates advanced functions such as audio ducking, EQ control, and a MIC mixer. The MIC input supports three selectable levels, accommodating condenser mic, dynamic mic, or line-level audio sources.
Operation is flexible, with control options via front panel buttons, IR remote or RS-232 with a control software.
- High-efficiency Class-D amplification with low heat generation and reliable operation
- Compact design suitable for rack, wall, ceiling or under-table mounting
- Mono audio output at 40Watt
- Switchable between 70V and 100V
- Ducking function
- 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
- MIC port can support balance/unbalance signal, suppress the external noise effectively
- Two stereo audio inputs and one digital audio input, switchable by button, IR remote & RS232
- Volume/Bass/Treble controllable by buttons, IR remote & RS232
- Fast switching speed for good performance
- LED indicator, for power and working status
