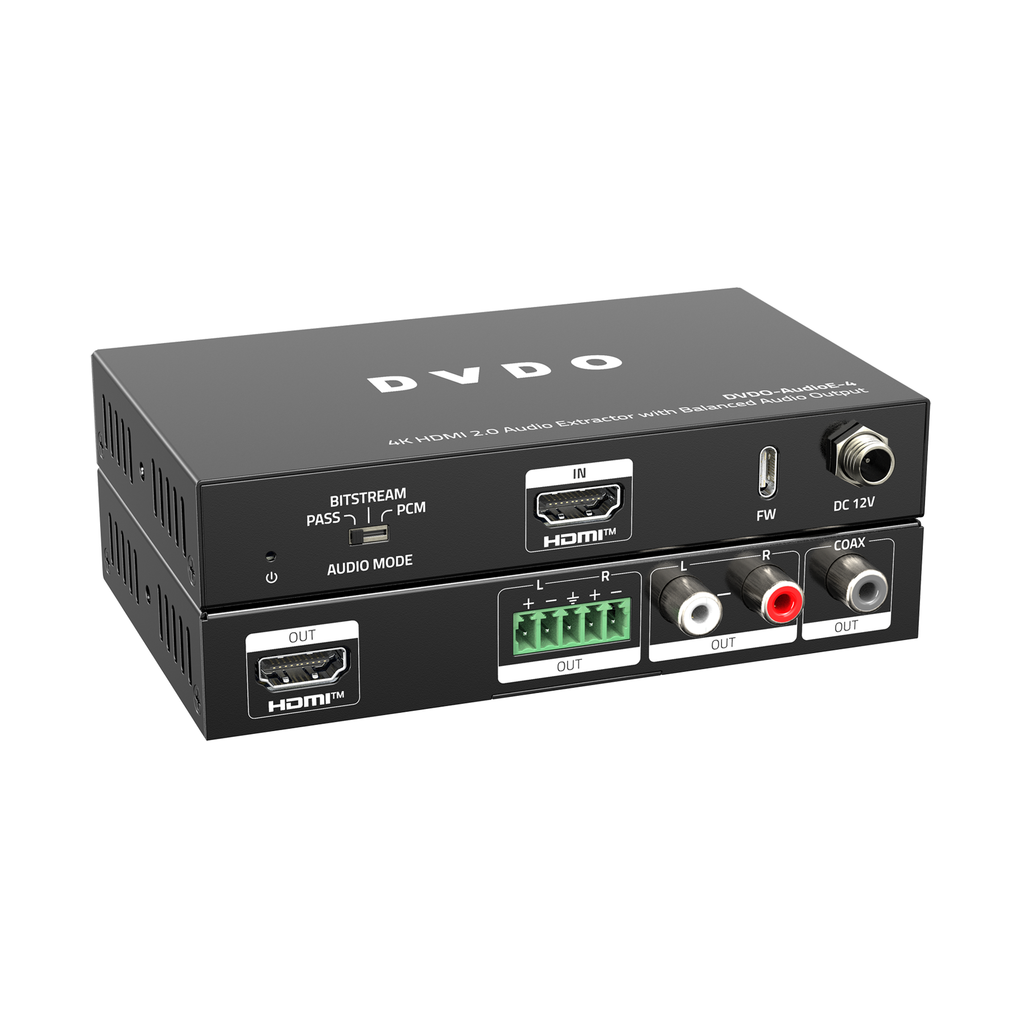

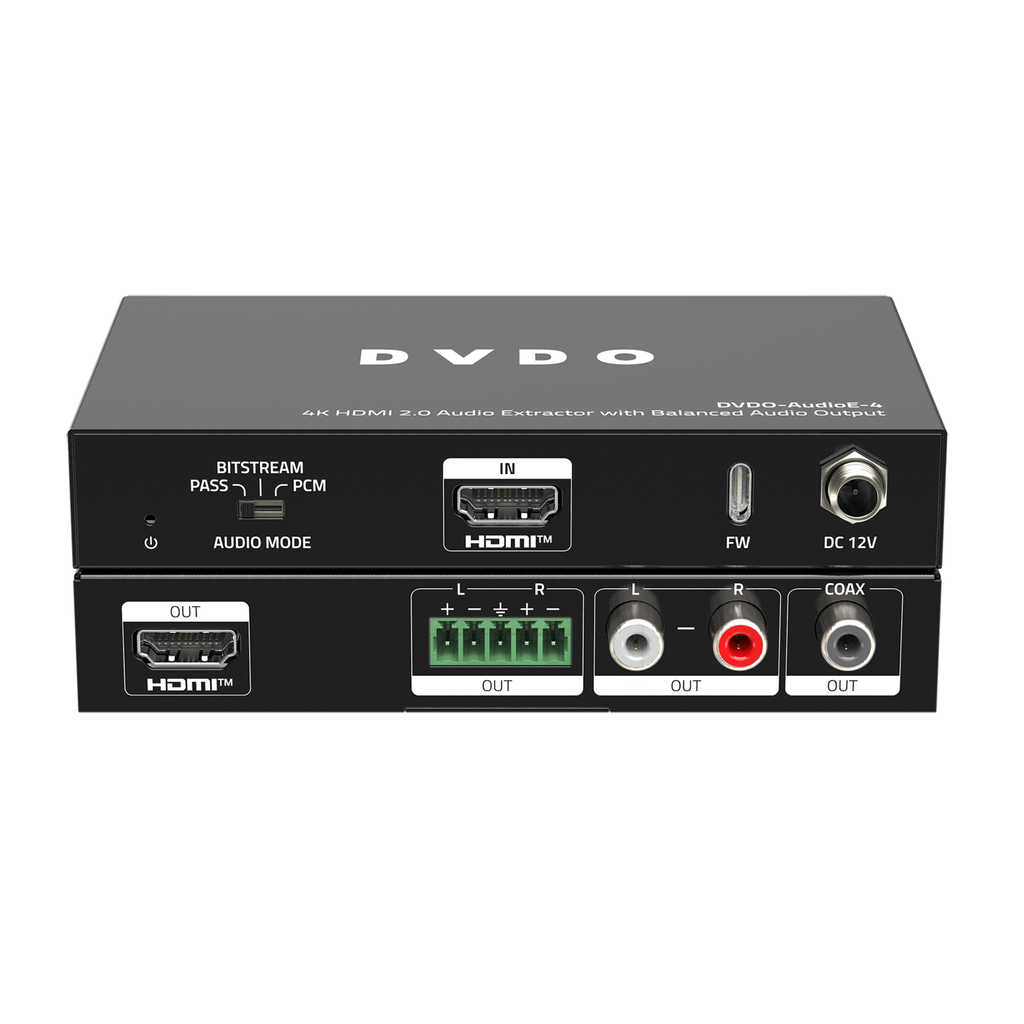

DVDO-AudioE-4 is an HDMI 2.0 audio extractor supporting video resolutions up to 4K@60Hz 4:4:4 and HDCP 2.2.

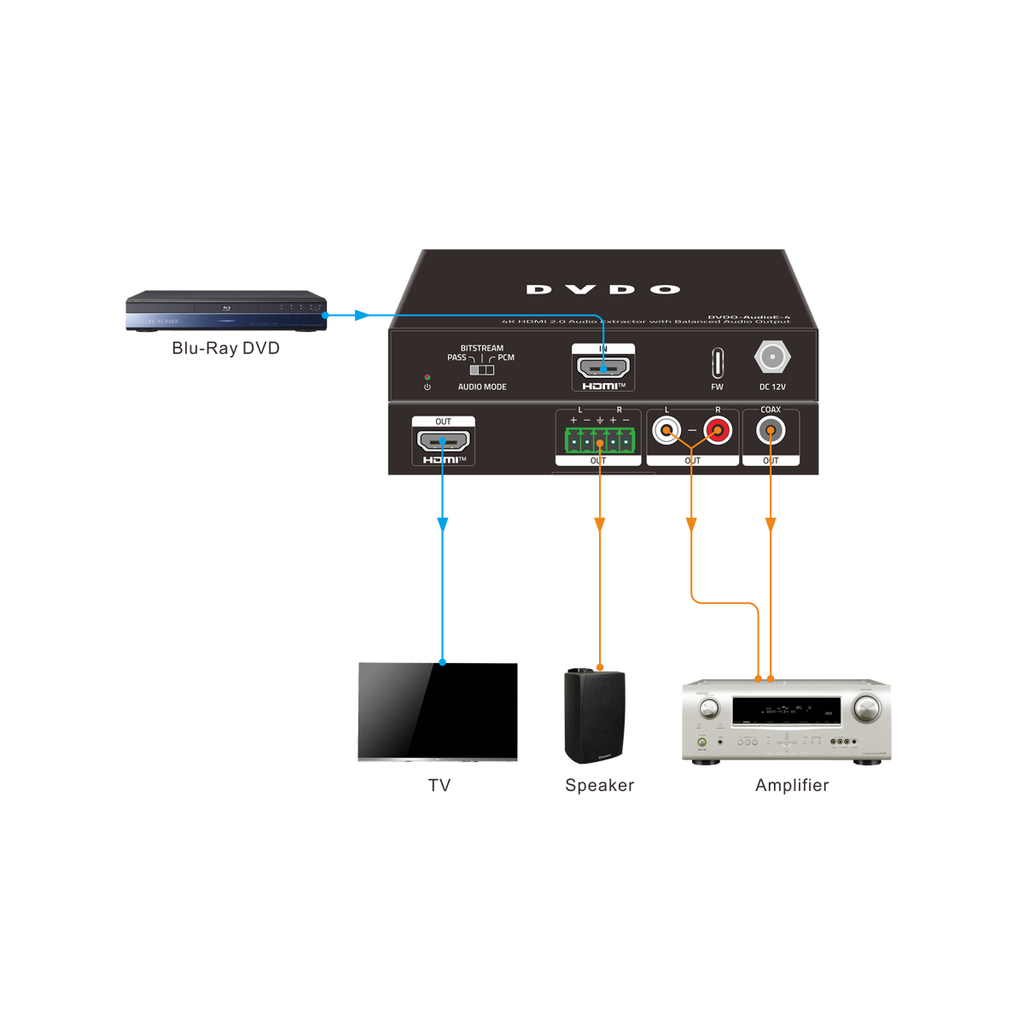

It extracts audio signals from any HDMI compliant source to balanced L/R audio, analog RCA L/R audio and optical digital audio outputs.
It features three audio modes: Pass, Bitstream and PCM.
It supports HDR 10+, Dolby Vision, EDID, HBR (High Bit Rate) audio and CEC pass-through.
- HDMI 2.0 & HDCP 2.2 compliant
- Stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports
- Three audio modes: PASS, BITSTREAM and PCM
- Supports 4K@60Hz/4:4:4, HDR 10+, Dolby Vision, EDID and CEC pass-through
- Transmission rate up to 18Gbps
- Coaxial digital audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- HDMI High Bit Rate (HBR) audio pass through
DVDO-AudioE-4 is an HDMI 2.0 audio extractor supporting video resolutions up to 4K@60Hz 4:4:4 and HDCP 2.2.
It extracts audio signals from any HDMI compliant source to balanced L/R audio, analog RCA L/R audio and optical digital audio outputs.
It features three audio modes: Pass, Bitstream and PCM.
It supports HDR 10+, Dolby Vision, EDID, HBR (High Bit Rate) audio and CEC pass-through.
- HDMI 2.0 & HDCP 2.2 compliant
- Stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports
- Three audio modes: PASS, BITSTREAM and PCM
- Supports 4K@60Hz/4:4:4, HDR 10+, Dolby Vision, EDID and CEC pass-through
- Transmission rate up to 18Gbps
- Coaxial digital audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- HDMI High Bit Rate (HBR) audio pass through
