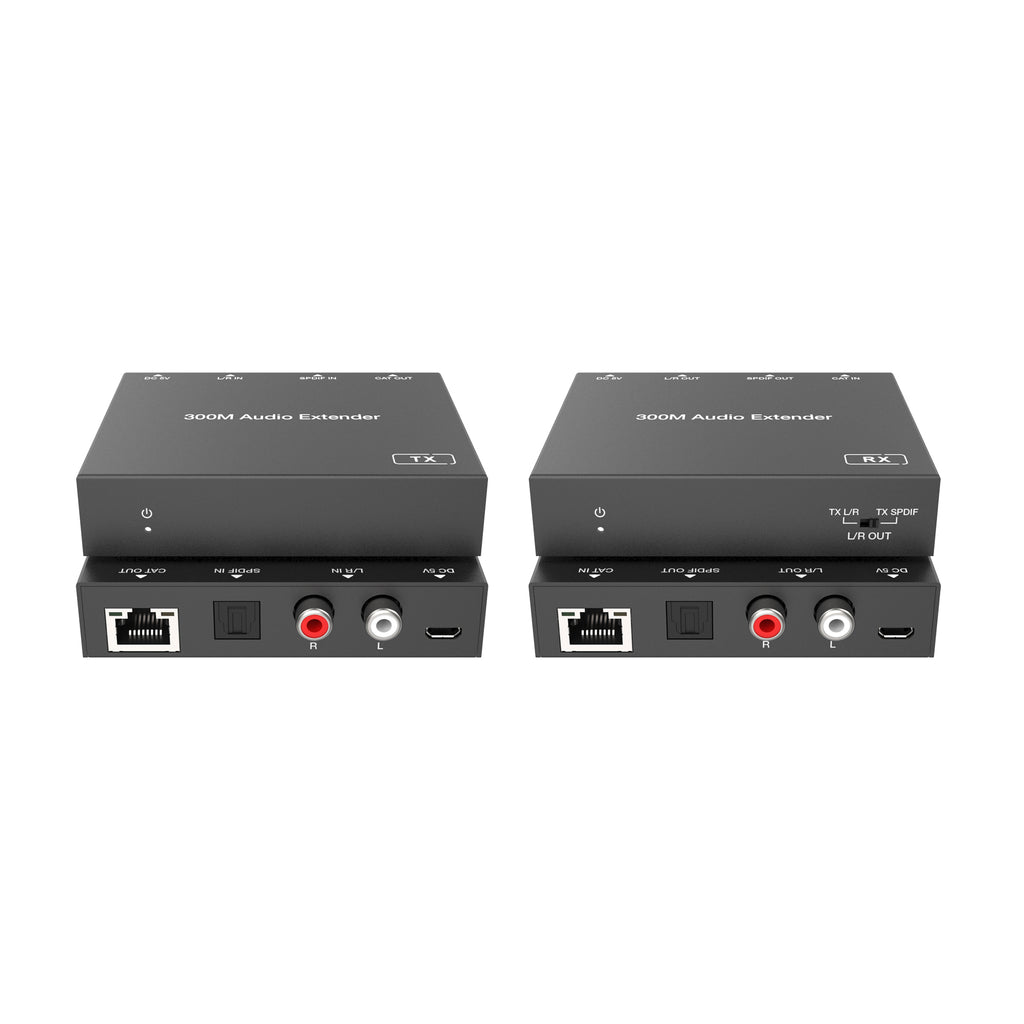

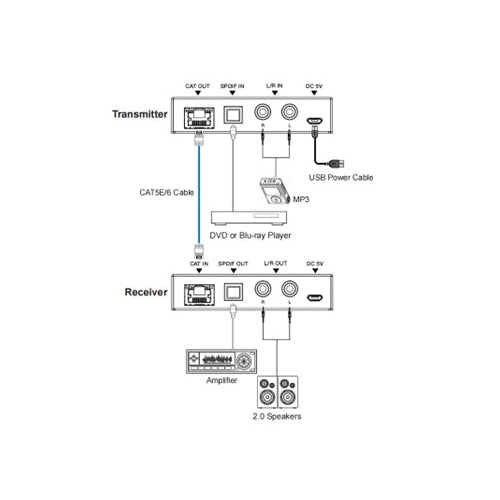

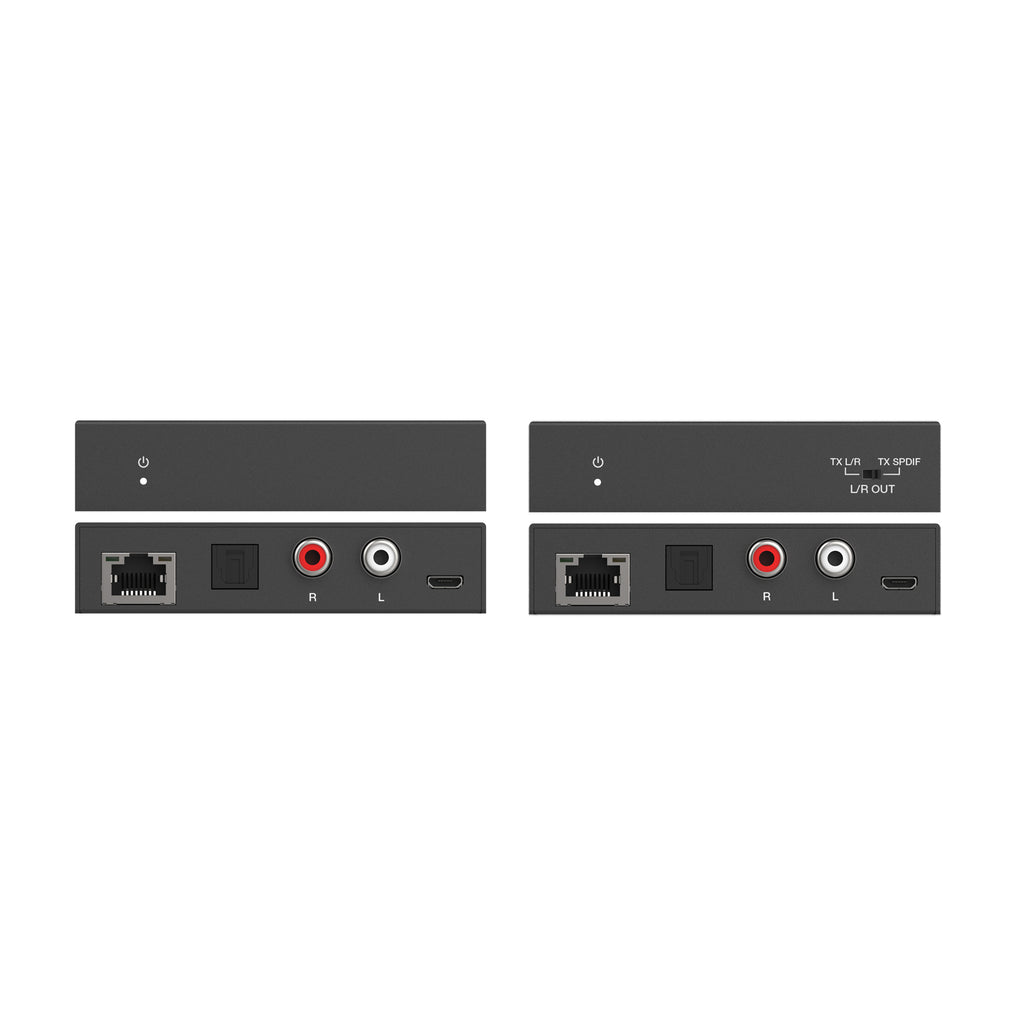

DVDO-CAT-Audio-300 is an audio extender that can transmit digital optical and analog audio signals up to 300m/990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) via a single CAT5E6 cable.
It supports LPCM, DTS, Dolby Digital and Dolby Digital Plus audio formats over optical audio.
It features a built-in DAC (Digital to Analog Converter), allowing the optical signal coming from the transmitter to be converted to analog output on the receiver end.
It also supports bi-directional PoC (Power over Cable), allowing the micro USB power cable to be connected to either the transmitter or the receiver.
- Extends optical and analog audio signals up to 300m/ 990ft (48kHz), 150m/495ft (96kHz) or 100m/330ft (192kHz) over a single CAT cable
- Audio formats: LPCM, DTS, Dolby Digital and Dolby Digital Plus
- Audio sample rates: 32kHz, 44.1kHz, 48kHz, 96kHz, 176.4kHz and 192kHz up to 24-bit resolution
- Built-in DAC (Digital to Analog Converter)
- Bi-directional PoC (Power over Cable)
- Plug-and-play with no drivers, downloads, or software required
- Ultra-low jitter and high-fidelity design
