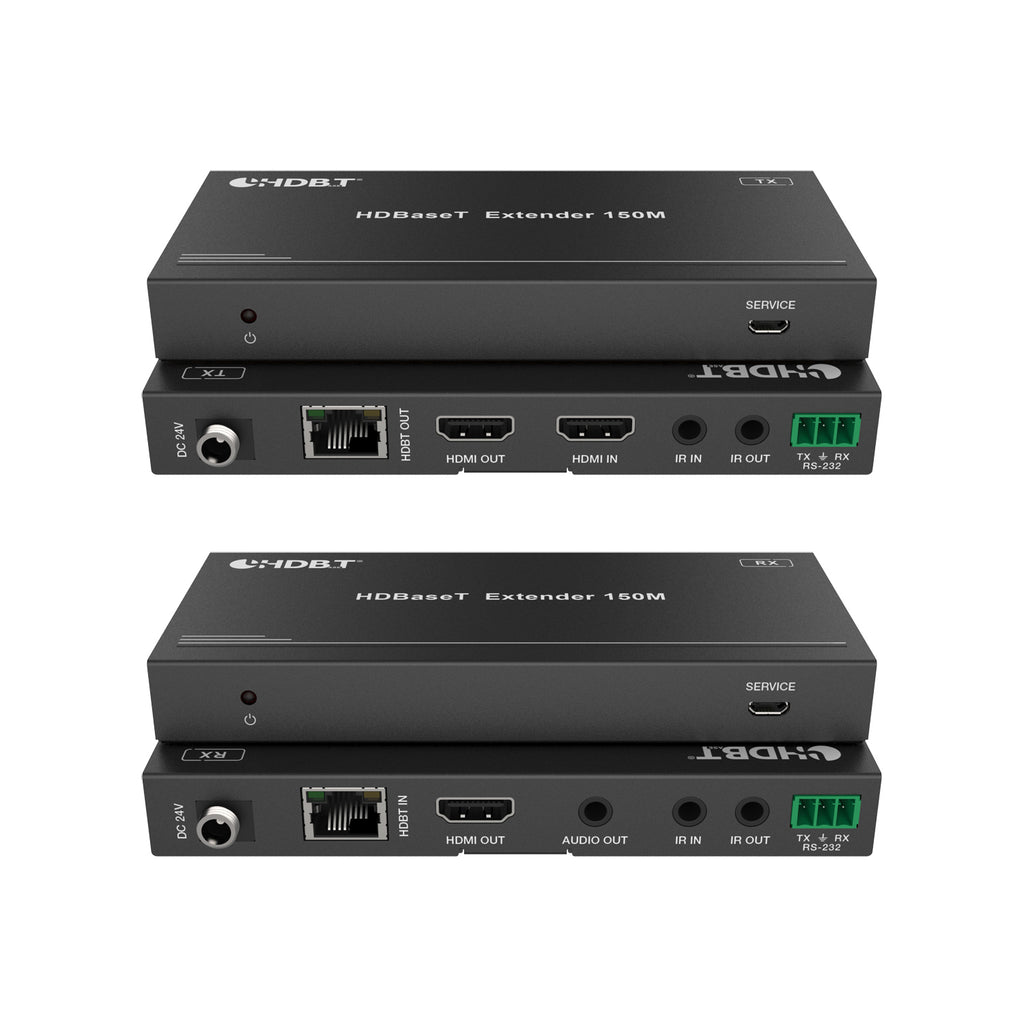

This 18Gbps HDMI extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150m between transmitter and receiver via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. The extender also supports de-embedded audio for L/R audio output. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.
- HDMI 2.0b / HDCP 2.2 & 1.4 / DVI 1.0 compliant
- Support 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable:
- 394ft / 120m for 4K2K signals
- 492ft / 150m for 1080p signals
- Support one HDMI loop output on the transmitter
- Extract audio to analog stereo output on receiver
- Bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support PoC (Power over Cable) function
- Compact design for easy and flexible installation
This 18Gbps HDMI extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150m between transmitter and receiver via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. The extender also supports de-embedded audio for L/R audio output. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.
- HDMI 2.0b / HDCP 2.2 & 1.4 / DVI 1.0 compliant
- Support 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable:
- 394ft / 120m for 4K2K signals
- 492ft / 150m for 1080p signals
- Support one HDMI loop output on the transmitter
- Extract audio to analog stereo output on receiver
- Bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support PoC (Power over Cable) function
- Compact design for easy and flexible installation
