DVDO-Xtend-USBC-70 is an HDBaseT 3.0 extender that can transmit uncompressed USB-C video and USB 2.0 high speed data signals up to 230ft/70m (4K30) or 131ft/40m (4K60) via a single CAT6A/7 cable.

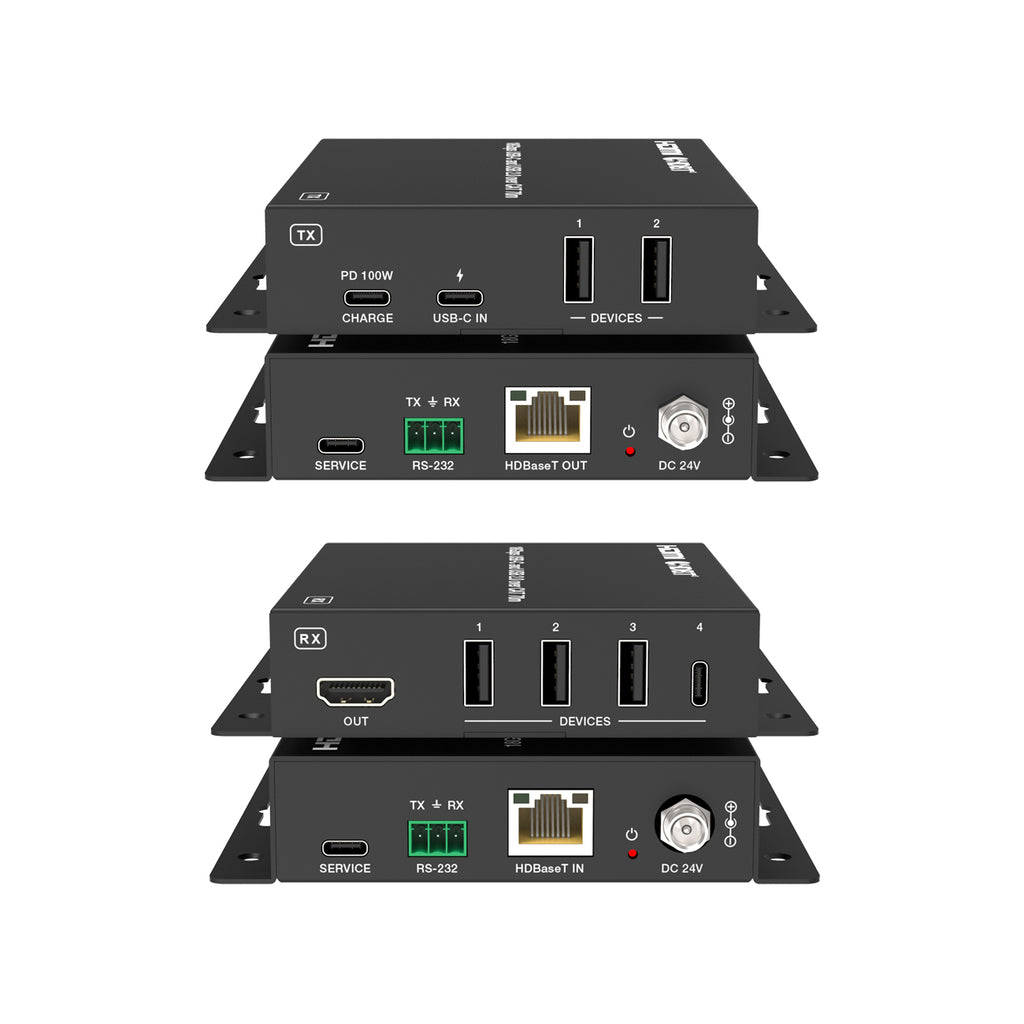

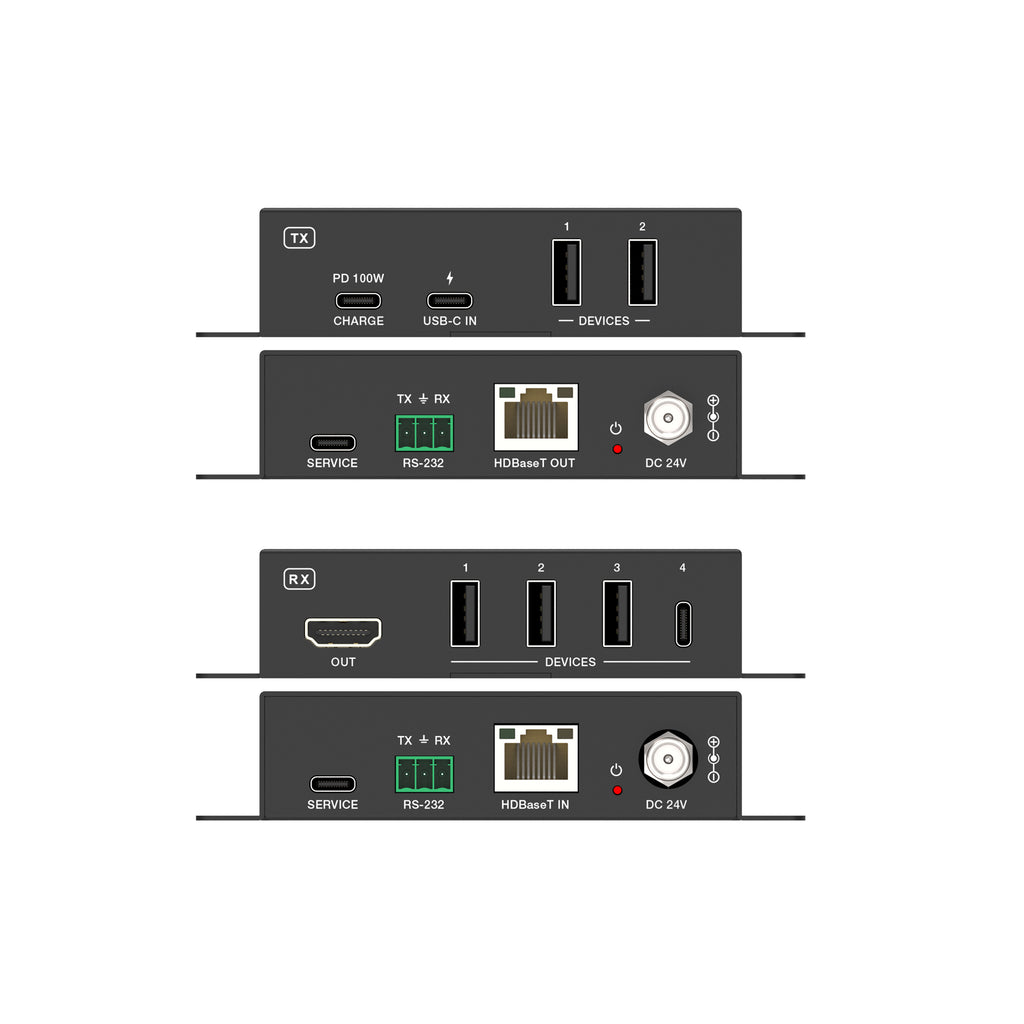

The transmitter includes 1 x USB-C input, 1 x dedicated USB-C charging port and 2 x USB Device ports.
The USB-C input supports DP Alt mode with video resolutions up to 4K60 4:4:4 at 18Gbps, USB 2.0 data and power charging up to 100W.
The receiver includes 1 x HDMI output and 4 x USB Device ports.
DVDO-Xtend-USBC-70 supports HDR, RS-232 pass-through and bi-directional 24V PoC.
- Compliant with HDMI 2.0b, HDCP 2.3 & HDBaseT 3.0
- Video resolution up to 4K@60Hz (4:4:4 8bit) @ 18Gbps
- Extends uncompressed 4K60 signals up to or 131ft/40m and 4K30 signals up to 230ft/70m with CAT6A/7 cable
- Tx includes 1 USB-C input, 1 dedicated USB-C charging port and 2 USB Device ports
- USB-C supports DP-ALT mode for AV (v1.2a), USB 2.0 data and power charging up to 100 watts
- Rx includes 1 HDMI output and 4 USB 2.0 Device ports
- Each USB-A provides power up to 5V/1A
- HDR, HDR10+, Dolby Vision LLM and HLG pass-through
- USB 2.0 high speed over HDBaseT 3.0
- RS-232 signal pass-through
- Audio passthrough: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Bi-directional 24V PoC
