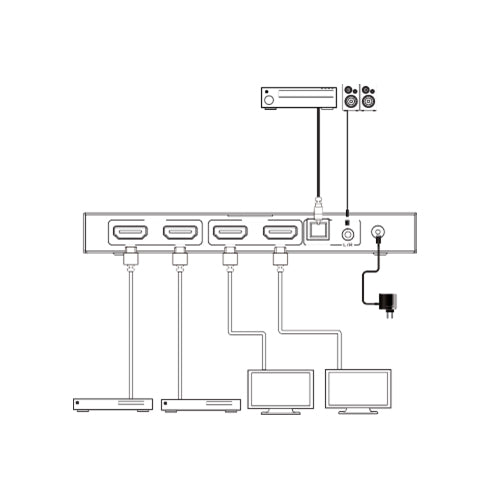

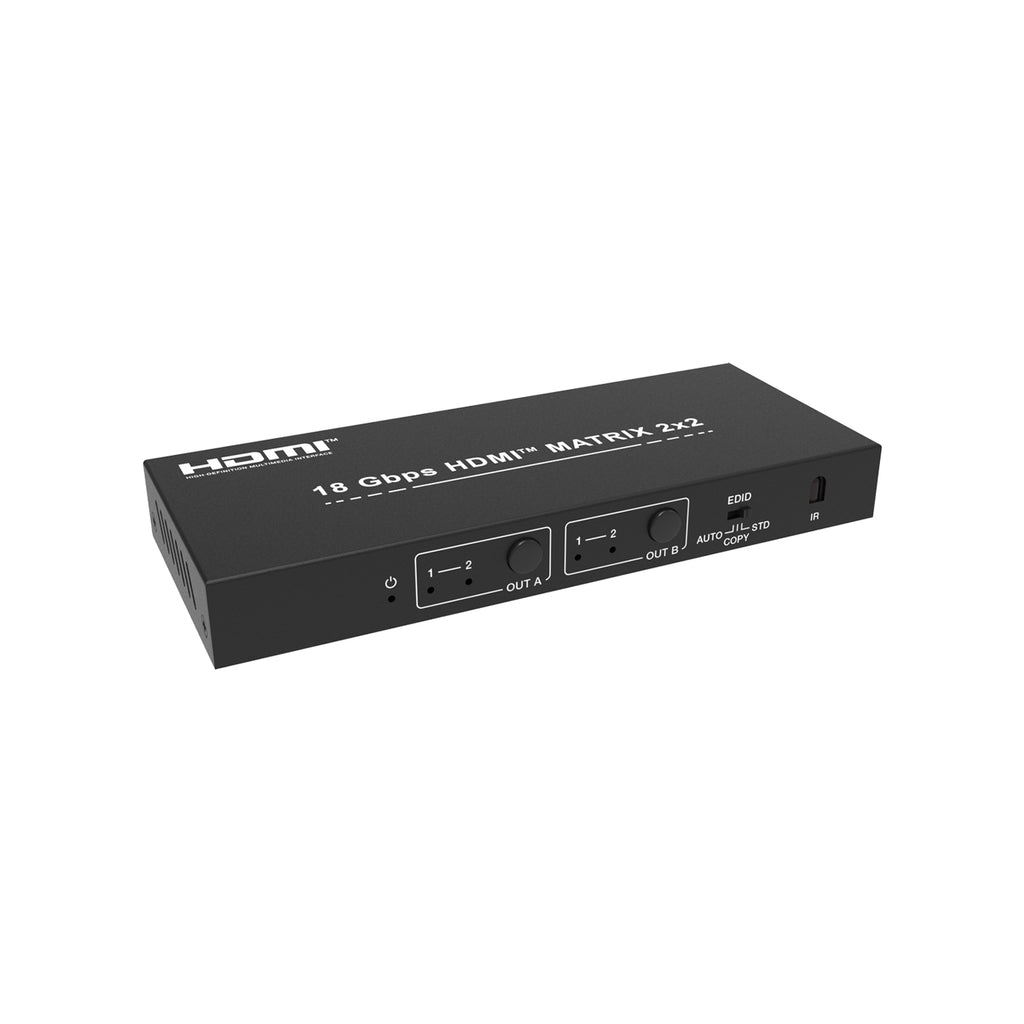

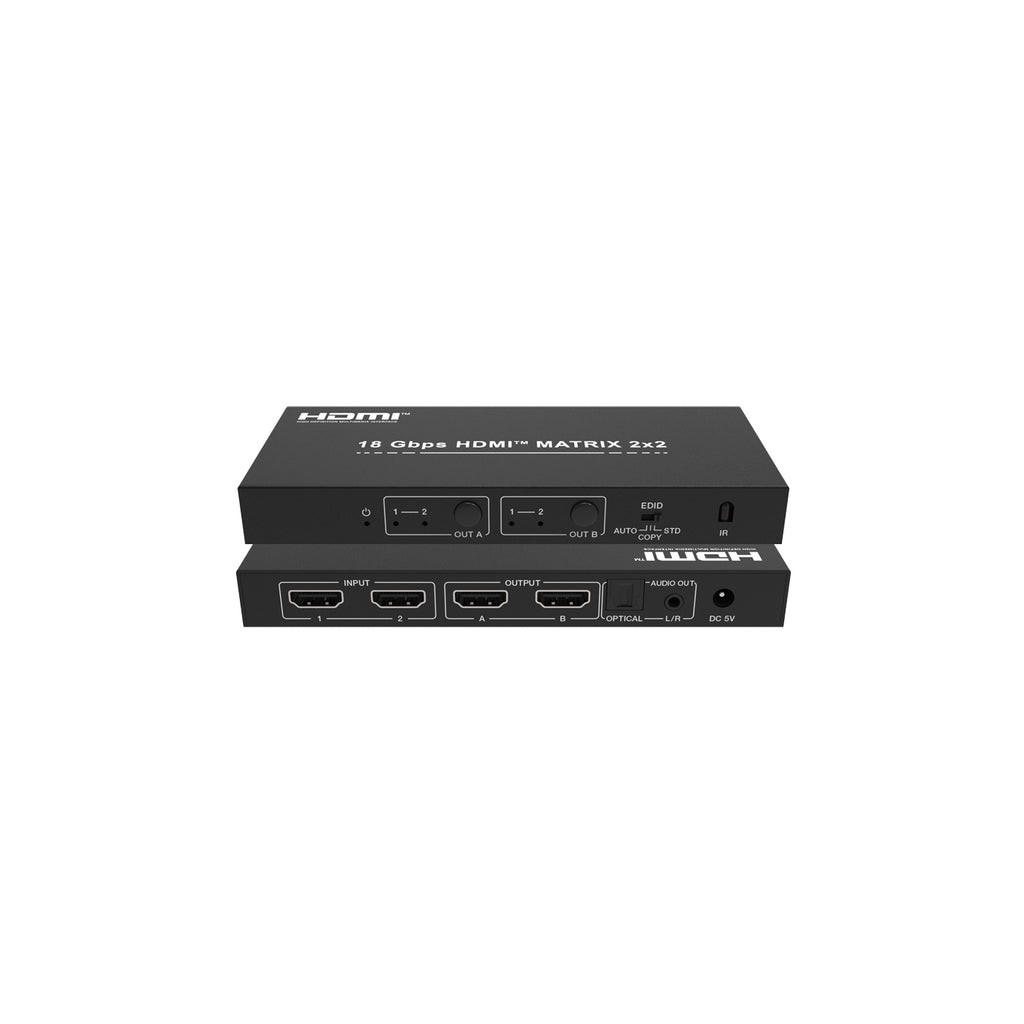

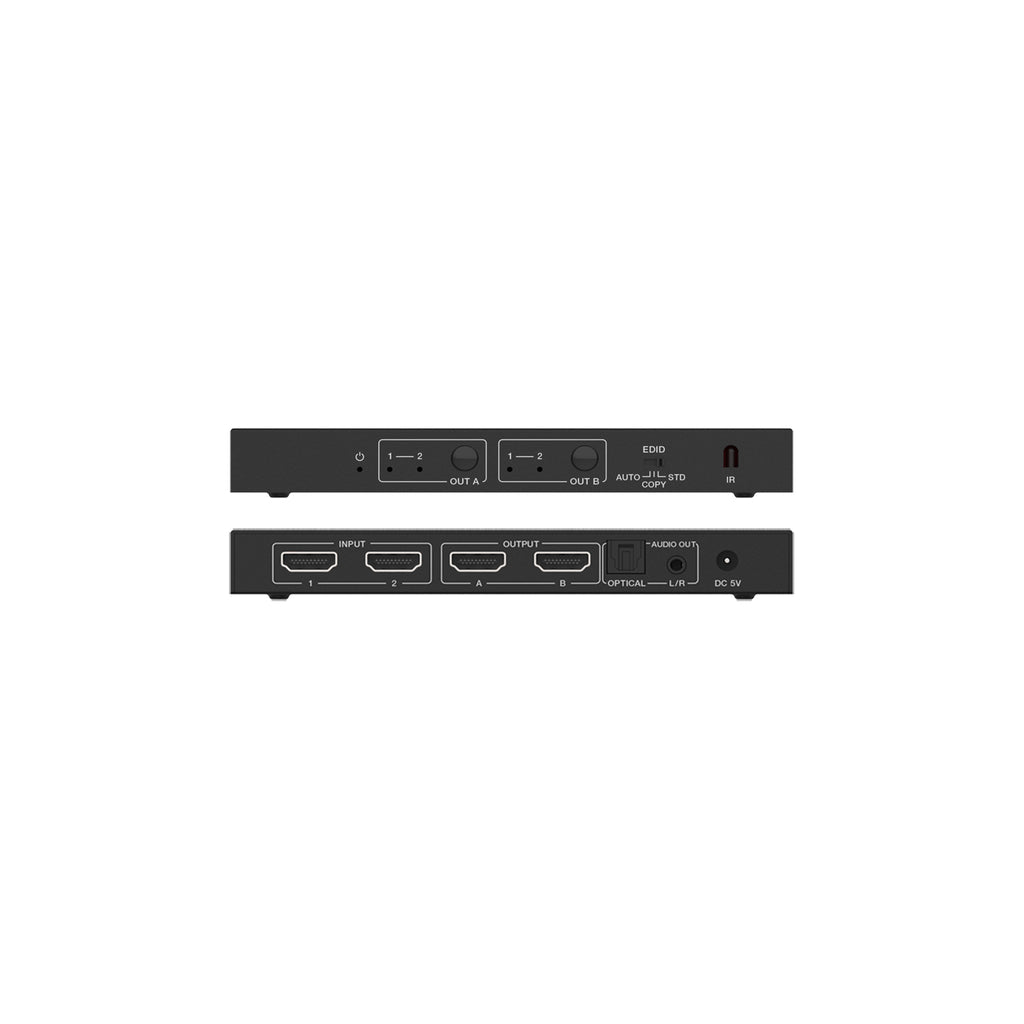

DVDO-Matrix-22 is a compact matrix switcher with two HDMI inputs and two HDMI outputs, allowing to route independently up to two HDMI sources to two separate displays.
It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.
It can de-embed the audio from the HDMI output A into separate optical and analog L/R audio outputs.
It also supports HDR and provides EDID management.
The unit can be controlled via the front panel buttons and remote control.
- HDMI 2.0, HDCP 2.2 / 1.4, DVI 1.0
- Video resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
- Supports 18Gbps video bandwidth
- Audio de-embedding from HDMI Output A with separate optical & analog L/R outputs
- Analog audio formats: PCM 2.0
- Digital optical audio formats: LPCM2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
- Supports Dolby Vision, HD & HDR 10+
- EDID management (AUTO/COPY/STD)
- Control via front panel buttons and IR remote control
- Compact design for easy and flexible installation
