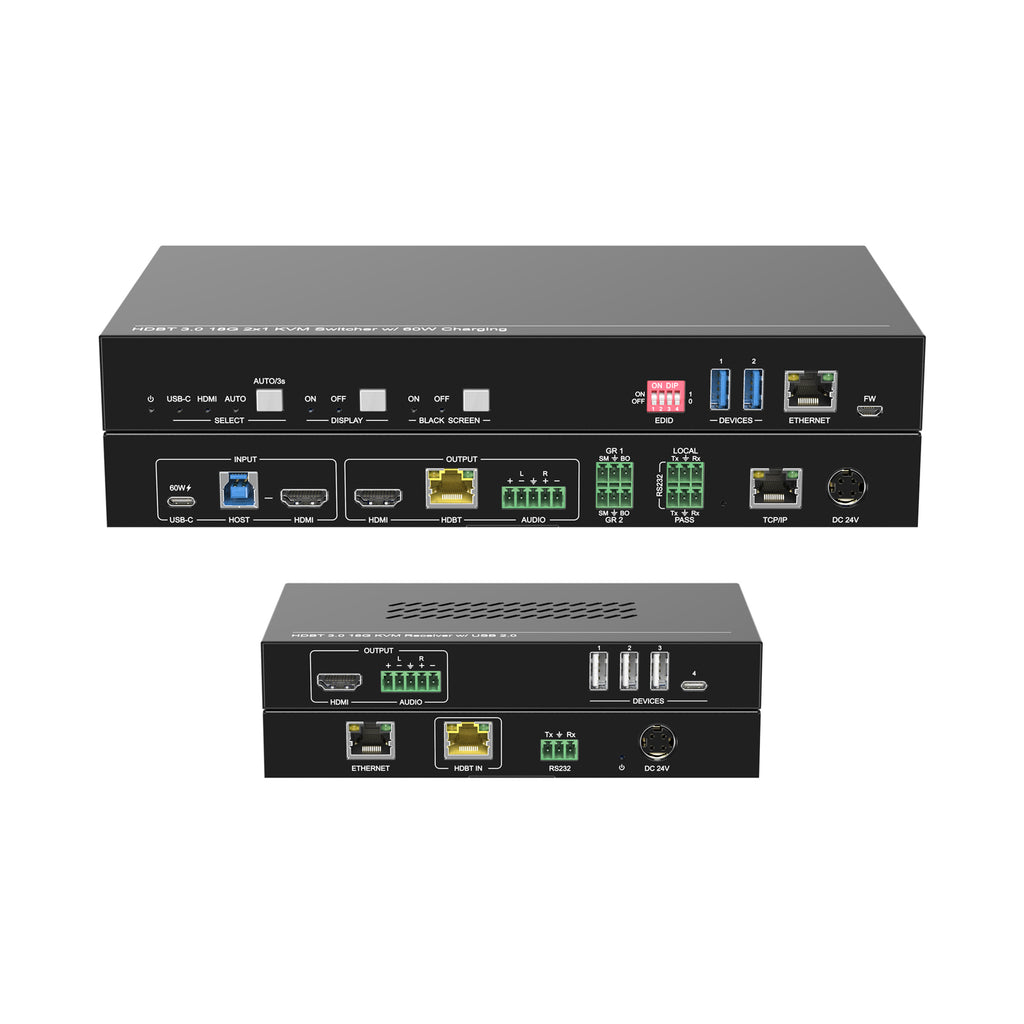

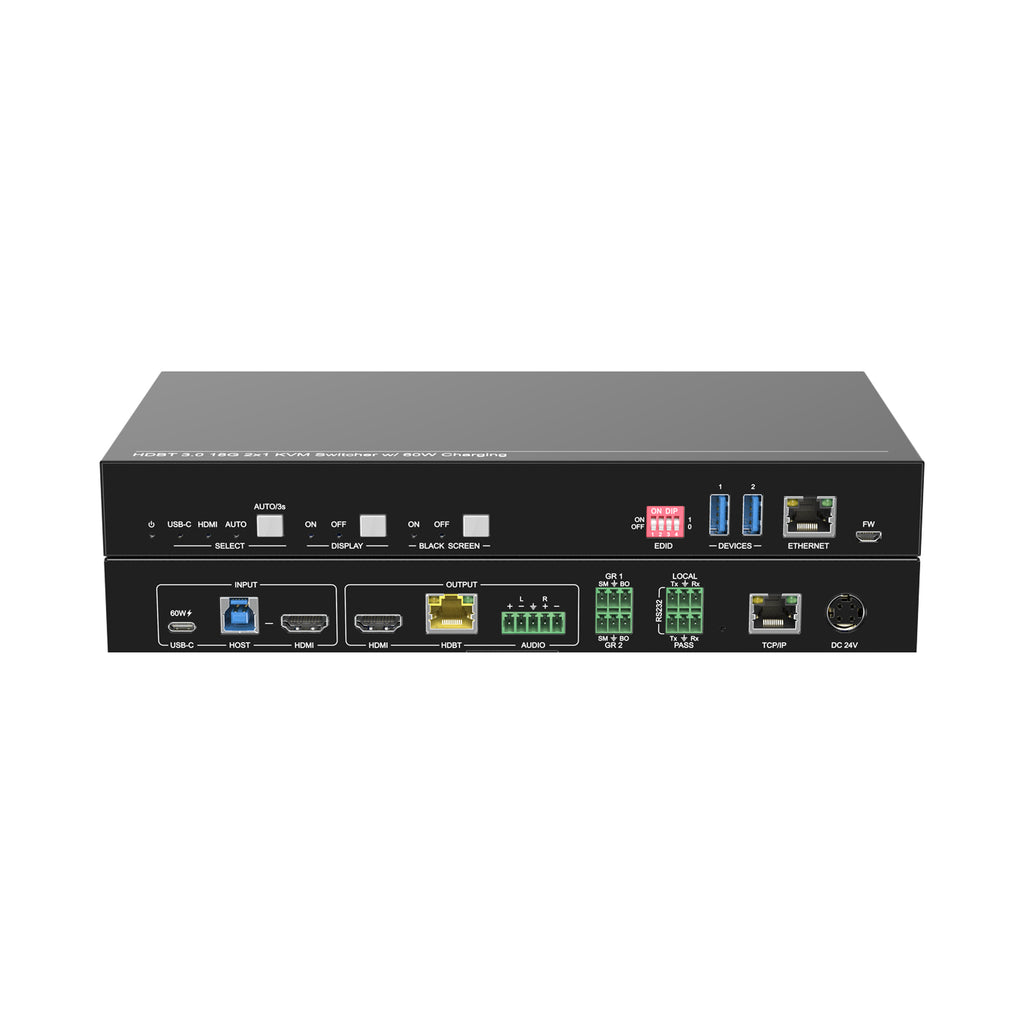

DVDO-USBC-HDMI-PS-21-Xtend is a 2x1 presentation switcher / extender. The transmitter includes 1 HDMI + 1 USB-C inputs and 1 HDMI with 1 mirrored HDBaseT outputs.
It supports video resolutions up to 4K60 4:4:4 and can extend uncompressed 4K signals up to 328ft/100m over HDBaseT 3.0 with a single Cat6a or Cat7 cable.
The USB-C input supports DP-Alt mode for video, 5Gbps for data transfer and 60W power delivery.
The unit provides USB switching and extension through multiple USB device ports on both Tx and Rx.
It also provides audio de-embedding with separate audio inputs on both Tx & Rx.
It can be controlled via the front panel buttons, CEC, RS232 or IP with an intuitive web GUI and supports bidirectional PoC.
- HDMI 2.0b, HDCP 2.2, HDBaseT 3.0, DP1.4
- Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps
- Transmission of uncompressed 4K & 1080p signals up to 328ft/100m over a single Cat6a or Cat7 cable
- Manual & auto switching modes
- Inputs: 1 x USB-C + 1 x HDMI
- Outputs: 1 x HDMI + 1 x HDBT (Tx) / 1 x HDMI (Rx)
- USB-C input supports 4K60 DisplayPort Alt Mode, USB 3.2 Gen 1 up to 5Gbps and 60W charging
- Audio de-embedding with separate balanced audio outputs on both Tx & Rx
- Multiple USB device ports: 2 x USB-A 3.0 on Tx / 3 x USB-A 2.0 + 1 x USB-C on Rx
- Advanced EDID management
- Control via front panel buttons, CEC, RS-232, TCP/IP or intuitive web GUI
- Bidirectional 48V PoC
