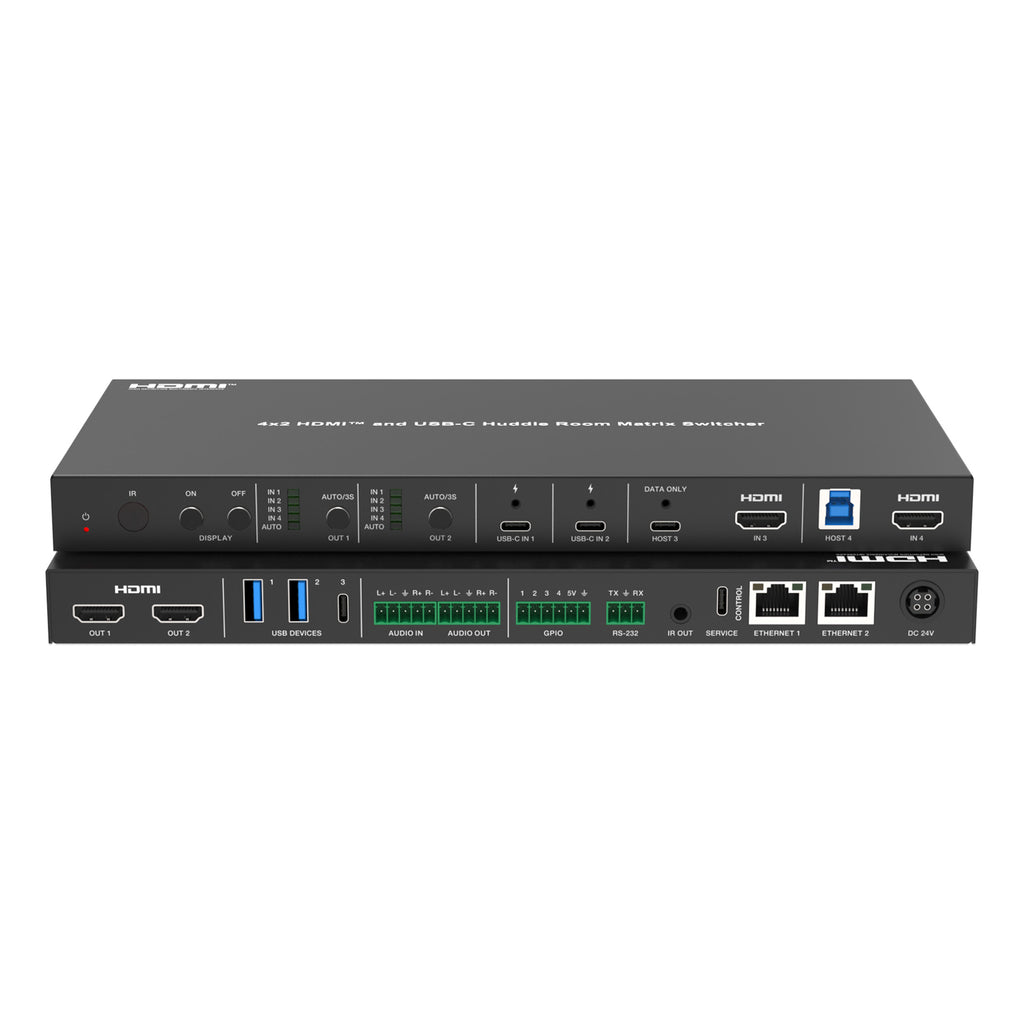

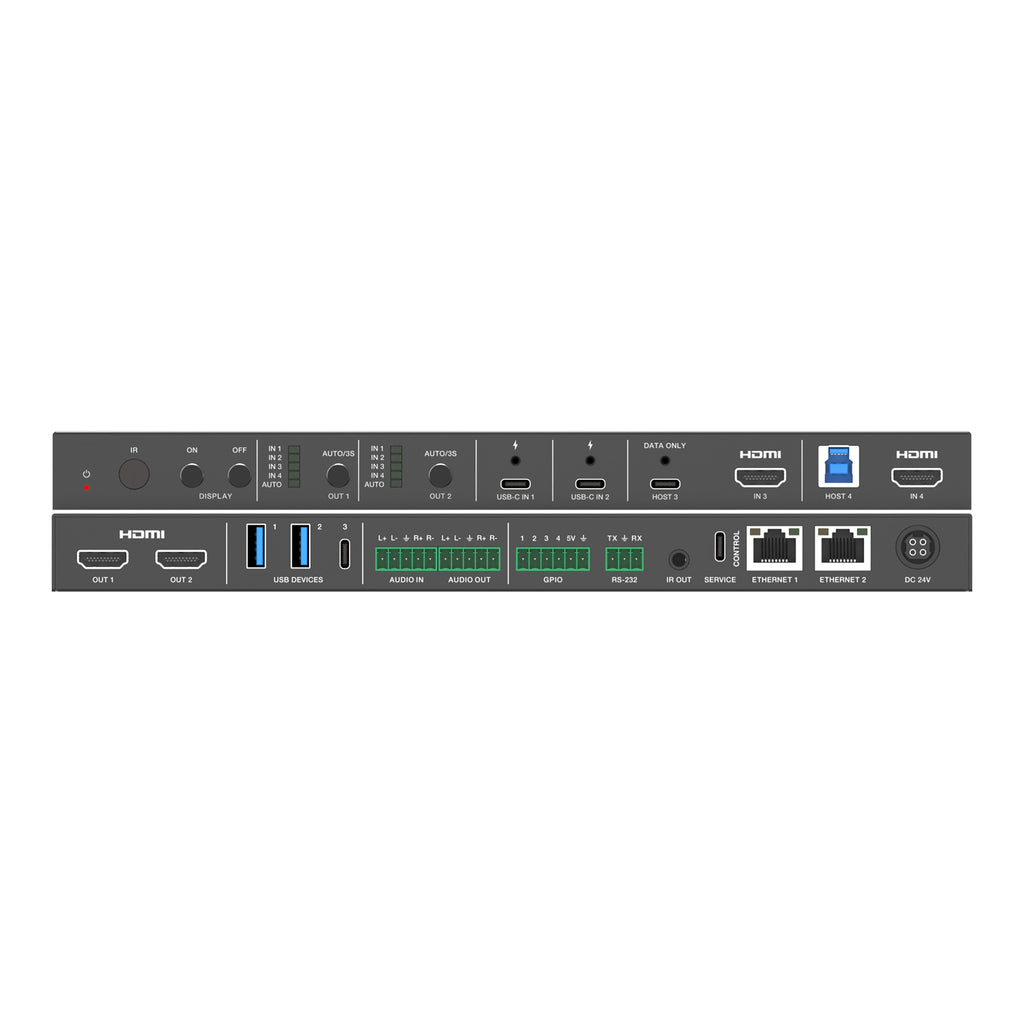

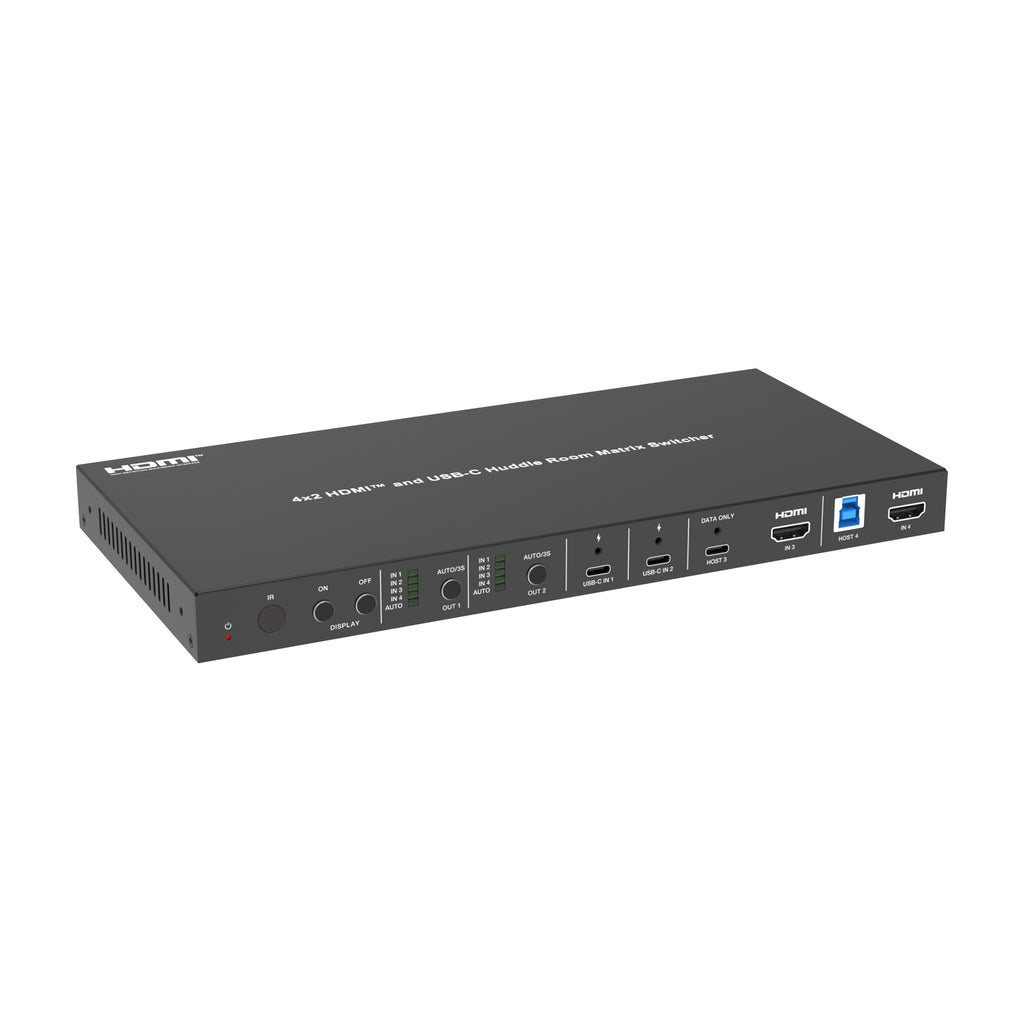

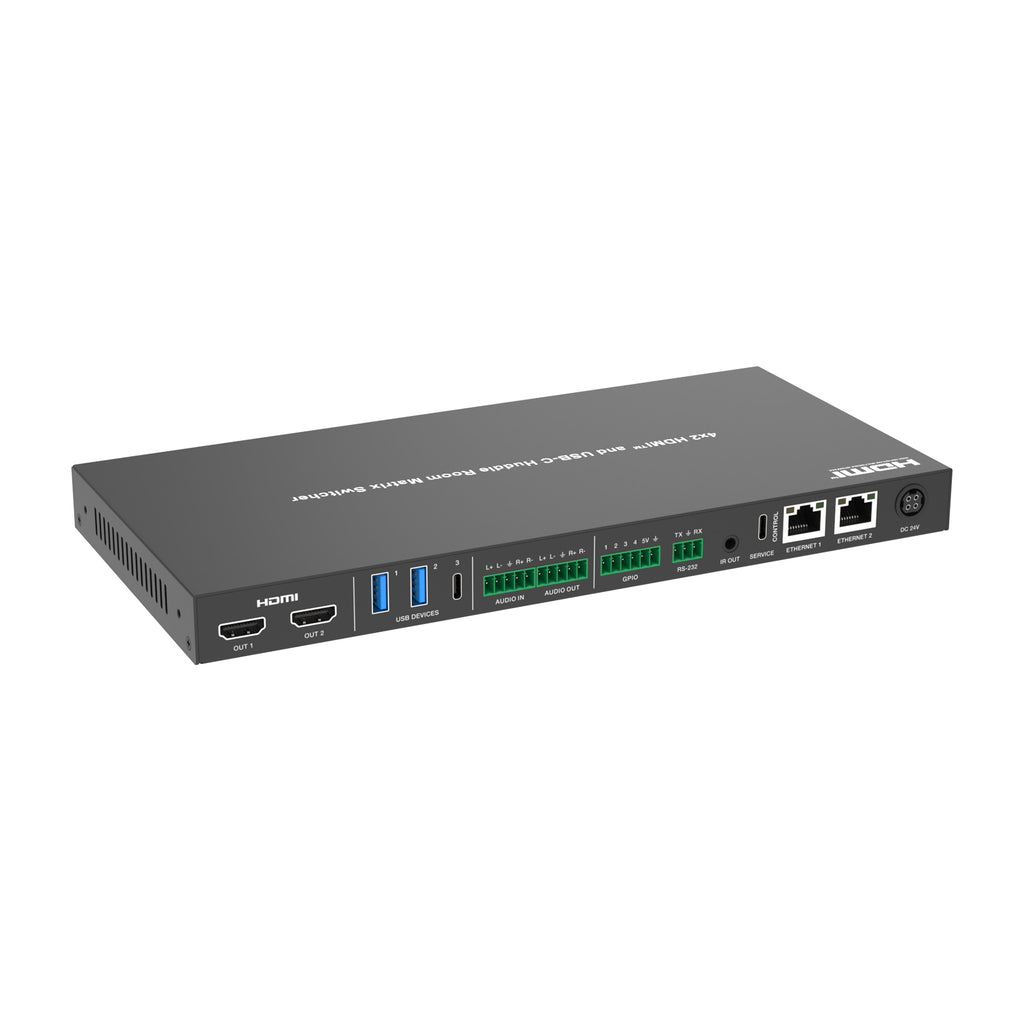

DVDO-USBC-HDMI-PS-42-XL is a 4x2 presentation switcher with 2 HDMI & 2 USB-C inputs, 2 HDMI outputs, 2 USB Host ports, dual Ethernet ports and separate balanced/un-balanced analog audio input and output.
It supports video resolutions up to 4K60 at 18Gbps as well as HDR.
The USB-C inputs support DisplayPort 1.4 Alt Mode up to 4K60 video, USB 3.2 Gen 1 up to 5Gbps data transfer, 1G Ethernet and up to 100W charging (50W each port if both ports are connected).
The unit also includes 3 USB 3.2 Gen 1 Device ports (1 USB-C + 2 USB-A) for peripherals such as camera, hard disk, keyboard and mouse that can connect to both inputs / host devices.
It features auto and manual switching as well as auto signal detection.
It can be controlled over TCP/IP, Web GUI, RS232, IR or via the front panel buttons.
- HDMI 2.0b, HDCP 2.3 and DP 1.4a compliant
- 2 x HDMI + 2 x USB-C inputs & 2 HDMI outputs
- USB-C inputs support DP Alt Mode up to 4K60 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G Ethernet & 100W charging (50W each port if both ports are connected)
- HDMI inputs support video resolutions up to 4K60 4:4:4
- Fast switching including auto & manual switching
- Auto switching with signal detection and 5V detection
- USB 3.2 Gen 1 (5Gbps) host and local hub
- USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output
- Balanced/un-balanced analog audio embedding to USB or HDMI audio
- Balanced/un-balanced analog audio de-embedding from USB or HDMI audio
- Advanced EDID management
- User defined welcome screen and no signal display image
- Dual 1G Ethernet ports with 802.1x and VLAN
- IR eye for IR learning and control
- Auto display on/off control
- External device control via CEC/IR/RS232/LAN/GPIO
- Control via front panel buttons, RS232, TCP/IP and Web GUI
