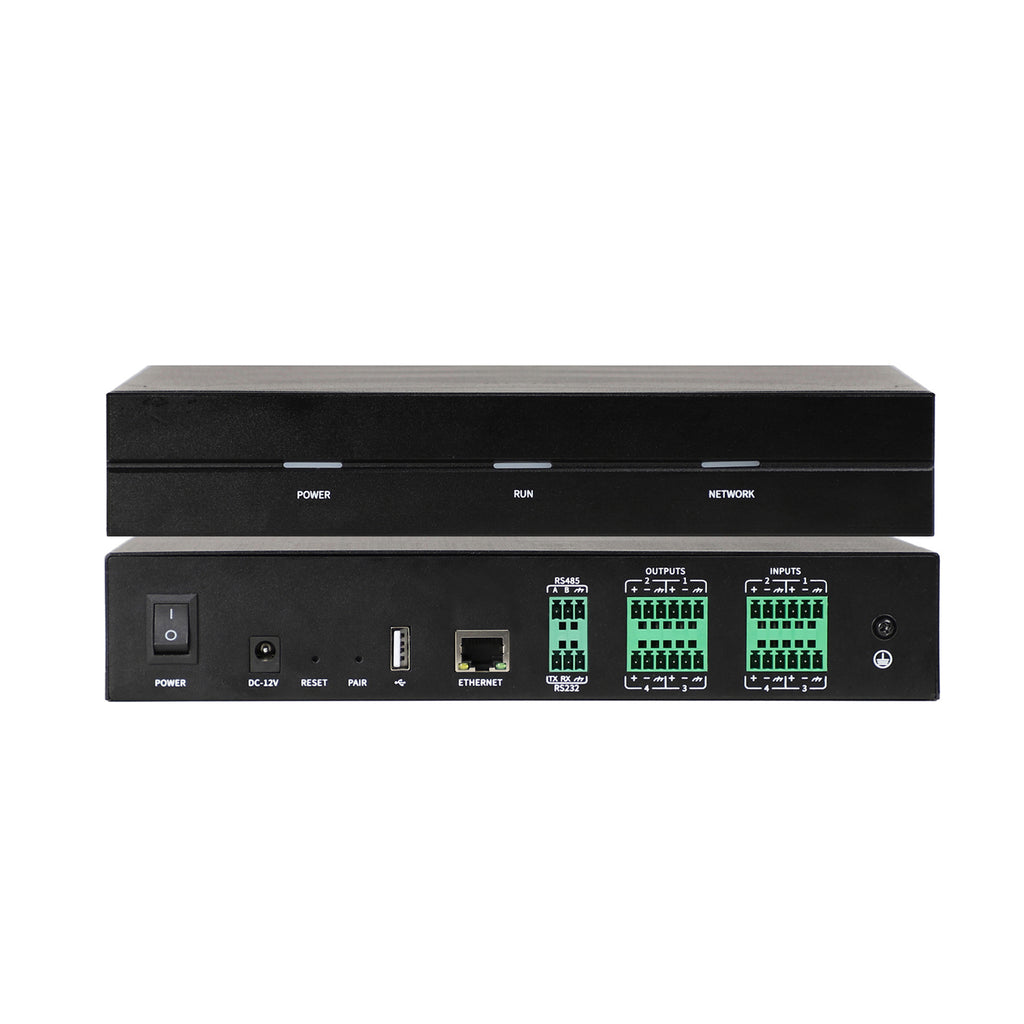

DVDO-DSP44-1 is a compact, high-performance digital signal processor with four balanced analog inputs and four balanced analog outputs.
It is designed for small to medium-size commercial audio installations requiring flexible routing and mixing as well as advanced signal optimization.
It features advanced audio technologies including Acoustic Feedback Canceler (AFC), Adaptive Echo Cancellation (AEC), Adaptive Noise Suppression (ANS), Automatic Gain Control (AGC), Active Noise Cancellation (ANC) & Auto Mixer (AM).
Its configurable DSP engine supports EQ, dynamics, filtering, delay, summing and full matrix routing, all controlled through an intuitive software interface or via RS232/RS485.
Additional features include voice tracking for PTZ cameras, a USB port for audio recording/playback & video conferencing, and front-panel status indicators.
- 4 balanced mic/line inputs
- 4 balanced line outputs
- 48V phantom power supply for MIC inputs
- Acoustic Feedback Canceler (AFC)
- Adaptive Echo Cancellation (AEC)
- Adaptive Noise Suppression (ANS)
- Automatic Gain Control (AGC)
- Active Noise Cancellation (ANC)
- Auto Mixer (AM)
- Matrix input / output signal routing, mixing and grouping functions
- Signal processing functions including equalizer, filter, expander, noise gate, limiter, delay, ducker,…
- Voice tracking with camera presets
- Built-in dual channel USB sound card for audio recording/playback and video conferencing
- RS232/RS485 control & control software with intuitive UI accessible through ethernet port
