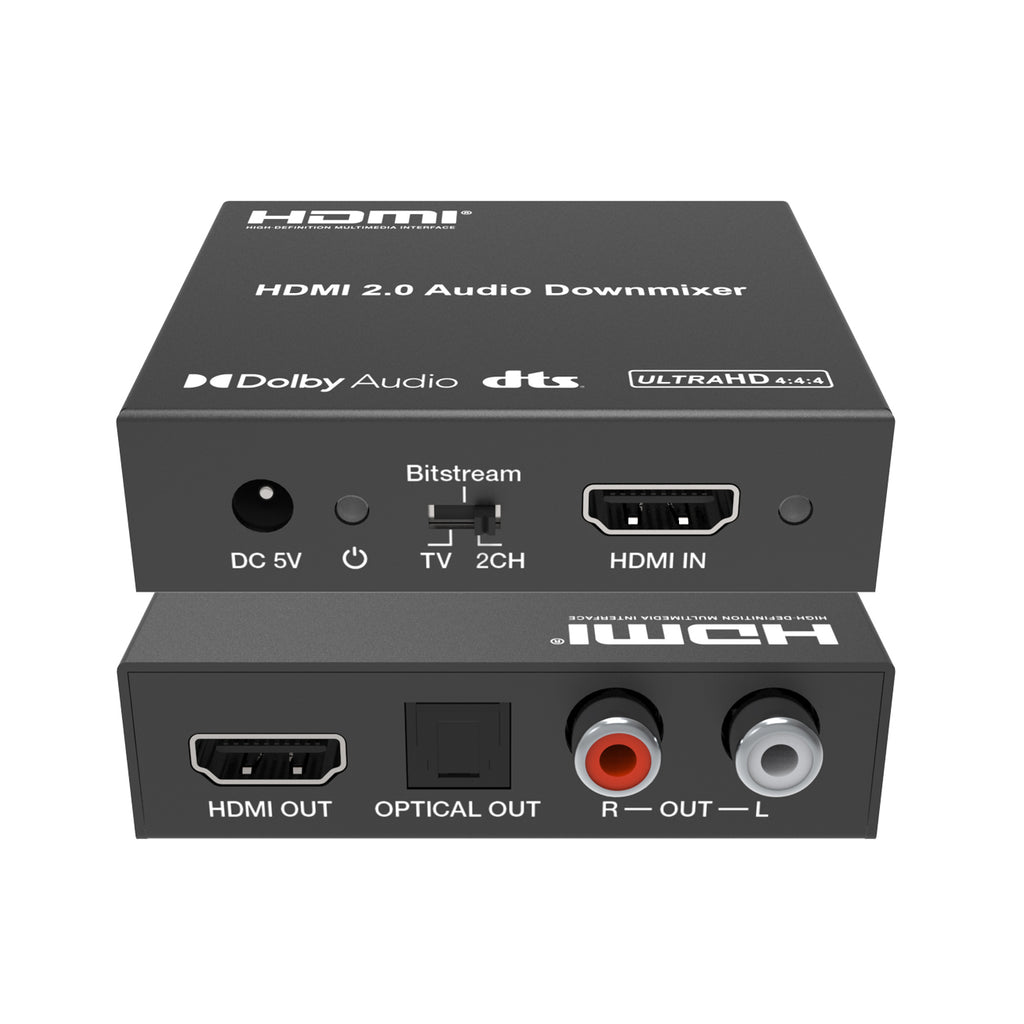

DVDO-AudioE-1 is an HDMI 2.0b audio extractor supporting video resolutions up to 4K@60Hz (Chroma subsampling YUV 4:4:4) and HDCP 2.2.
It extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs.
It passes-through the audio including high resolution digital audio formats (LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio) to the HDMI and optical outputs and provides bitstream audio down-mix to the analog stereo output.
It supports 10bit HDR (High Dynamic Range), HBD (High Bit Rate) audio and CEC pass-through.
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video resolutions up to 4K@50/60Hz (YUV 4:4:4)
- Extract HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- HDMI Pass-through audio input to HDMI and optical audio output
- SPDIF audio output supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH (SPDIF output mutes if the audio input is LPCM 7.1, Dolby Digital Plus or Dolby Atmos)
- Bitstream audio down-mix to L/R analog output for LPCM 2/5.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH (L/R output sends out 2CH PCM audio if the audio input is LPCM 7.1 and mutes if the audio input is Dolby Digital Plus or Dolby Atmos)
- HDMI High Bit Rate (HBR) audio pass through
- Audio sample rates up to 192kHz
- 10bit HDR (High Dynamic Range) pass through
- CEC pass-through
