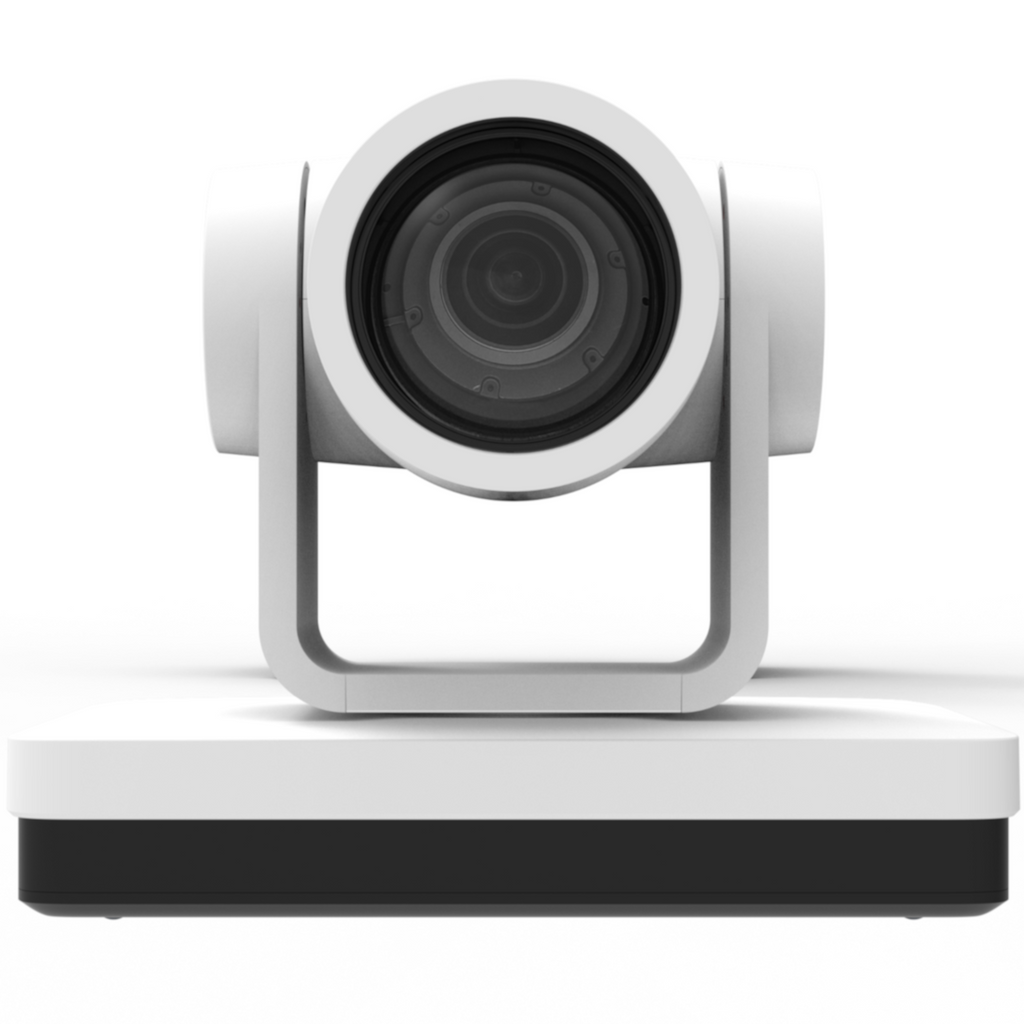

The DVDO-C4-1 camera features advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video more fluent and clear under low bandwidth conditions
- Full HD Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60 fps.
- Multiple Optical Zoom Lens: 20X optical zoom lens.
- Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.
- Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.
- Multiple video output interfaces: HDMI, SDI, USB3.0, LAN.
- Simultaneously output: audio and video signal via HDMI, SDI and LAN. LAN interface support POE, USB 3.0 support dual code stream, SDI support transmission up to 100m under 1080P60 format
- Multiple Audio/Video Compression Standards: Support H.264/H.265 video compression, up to 1920×1080 resolution 60 fps; support AAC, MP3 and G.711A audio compression, 8000, 16000, 32000, 44100, 48000 sampling frequency
- USB3.0 Support Dual Coding Stream: Support main stream and sub –stream, and simultaneous output; support YUY2, MJPEG, H.264, NV12, H.265 video coding format
- Built-in Gravity Sensor: support PTZ auto-flip function and easy installation.
- Multiple Network Protocol: support ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza,FMS); Support RTP multicast mode;
- Control Interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and the RS232 interface supports cascading.
- Multiple Control Protocol: Support VISCA,PELCO-D,PELCO-P protocols; Support automatic identification protocols.
- Quiet Pan / Tilt Movement: with high accuracy step driving motor, camera can pan / tilt extremely quiet and smooth.
- Various remote controls: Users can choose infrared remote control or wireless remote control according to the environmental conditions used. The 2.4G wireless remote control is not affected by angle, distance, and infrared interference. Support the remote control signal transparent transmission function, which is convenient for back-end equipment to use.
- AI Human Detection: Built-in high-speed processor and advanced image processing and analysis algorithms, users can choose real-time tracking and regional tracking according to the environment.
- Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.
Camera Parameter | |||
Parameter/Model | 20X | ||
Focus | 5.2 -- 98mm | ||
FOV | 3.2° （N）
56°（W） |
| |
Aperture Value | F1.5 -- F3.0 | ||
Digital Zoom | 15X | ||
Effective Pixels | 2.07, 1/2.8-inch high-quality CMOS sensor | ||
| HDMI/SDI: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, | ||
| 1080P59.94, 1080P29.97, 720P59.94； | ||
| USB3.0: main stream：YUY2/NV12: | ||
Video Format | 1920×1080/1280×720/1024×576/ 800×600/ 800×448/ 640×360/640×480/ 480×270/320× | ||
180@30/25/20/15/10/5fps; | |||
MJPG/H264: | |||
1920×1080, 600×896, 1280×720, 1024×576, 960×540, 800×600, 800×448, 720×576/720 ×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps; Sub-stream：YUY2/NV12: 1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320× 180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720 ×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps; | |||
Minimum illumination | 0.5Lux(F1.8, AGC ON) | ||
DNR | 2D﹠3D | ||
AWB | Automatic, manual, one-key white balance, specified color temperature | ||
Focus mode | Automatic, manual, one-key focus | ||
Exposure mode | Auto, manual, shutter priority, aperture priority, brightness priority | ||
Iris value | F1.8 -- F11,CLOSE | ||
Shutter Speed | 1/25 -- 1/10000 | ||
BLC | on/off | ||
Dynamic range | Off, 1 -- 8 | ||
Image adjustment | Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma
curve | ||
SNR | ≥50dB | ||
AI Function & Performance | |||
Real-Time Tracking | Maximum Tracking Range: 6-7 meters. Support speakers to walk at a speed of 3-4 meters | ||
Regional Tracking | Maximum Tracking Region: 4. Support set the region within horizontal -170°～+170° and vertical -30°～+90° | ||
Interface | |||
Product Interface | HDMI,LAN(POE),USB3.0（B Type ,Compatible with USB2.0）, SDI,A-IN,RS232-IN,RS232-OUT,RS422（Compatible with RS485）,Rotary Switch,DC12V Power, | ||
Video Encoding Format | LAN Interface：Support main stream and sub-stream H.265 , H.264 USB3.0 Interface：main stream support YUY2,MJPG,H264,NV12 | ||
Audio input interface | Dual channel 3.5mm linear input | ||
Audio output interface | HDMI,SDI,LAN,USB3.0 | ||
Audio compression | AAC, MP3, G.711A | ||
LAN interface | 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output | ||
Network protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT
Support remote upgrade, remote restart, remote reset | ||
Control Interface | RS232-IN,RS232-OUT,RS422 compatible with RS485 | ||
Serial communication protocol |
VISCA/Pelco-D/Pelco-P; support baud rate 115200/38400/9600/4800/2400 | ||
USB communication protocol | UVC（video communication protocol）,UAC（audio communication protocol） | ||
Power interface | HEC3800 Power socket (DC12V) | ||
Power adapter | Input AC110V-AC220V； output DC12V/2.5A | ||
Input voltage | DC12V±10% | ||
Input currency | <1A | ||
Consumption | <12W | ||
PTZ | |
Pan rotation | -170° -- +170° |
Tilt rotation | -30° -- +90° |
Pan speed | 0.1°/s -- 100°/s |
Tilt speed | 0.1°/s -- 45°/s |
Preset speed | Pan：100°/s,Tilt：45°/s |
Preset quantity | Maximum 255 preset positions can be set(10 via remote controls) |
Other Parameter | |
Storage temperature | -10℃ -- +70℃ |
Storage humidity | 20% -- 95% |
Working temperature | -10℃ -- +50℃ |
Working humidity | 20% -- 80% |
Dimension | 181mm×115mm×149mm |
Weight | 1.15kg |
Environment | Indoor |
Accessory | |
Standard accessory | Power adapter, RS232 control line, USB3.0 connection line, remote control, manual,
warranty card & certificate |
Optional accessory | Ceiling mounting bracket, wall mounting bracket |
