4K HDMI 2.0b Audio Embedder

Category: Converters
DVDOSKU: DVDO-AudioEmb-1

MSRP: $99.00

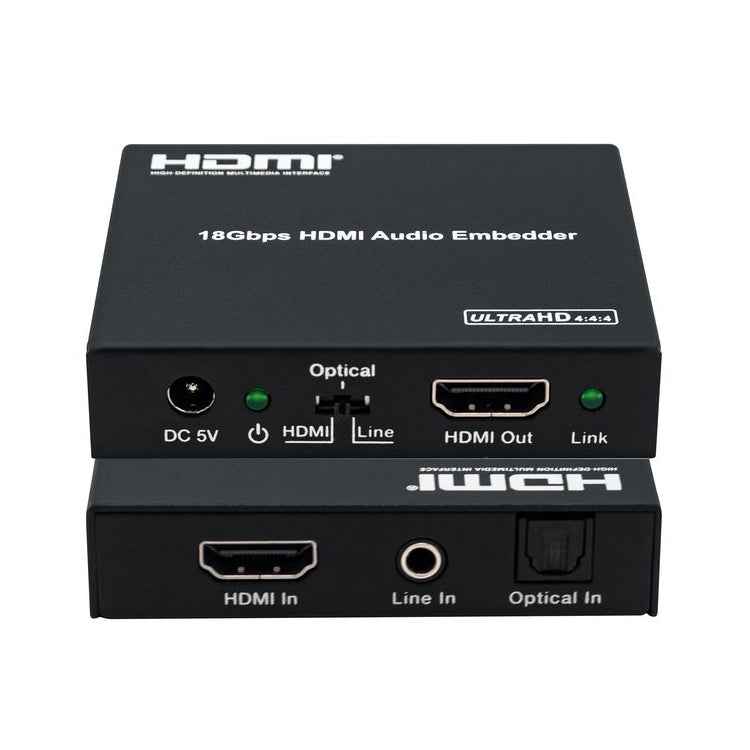

The HDMI 18Gbps Audio Embedder can embed audio signals from digital optical or analog stereo Line audio to HDMI output. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

  • Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output
  • Optical audio supports LPCM 2CH, Dobly Digital 2/ 5.1CH, DTS 2/5.1CH
  • Analog audio supports PCM2.0
  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
  • Video resolutions up to 4K2K@50/60Hz (YUV444)
  • Supports HDMI High Bit Rate(HBR) audio pass through
  • 10bits HDR (High Dynamic Range) pass through
  • Supports CEC bypass

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18Gbps

Video Resolutions

up to 4K2K@50/60Hz(YUV4:4:4),4K2K@

30Hz,1080P@120Hz and 1080P3D@60Hz

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:0

Color Depth

10-bit, 12-bit

HDMI Audio Formats (Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1,

Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

Optical Audio

Formats

LPCM 2CH, Dolby Digital 2/5.1CH,

DTS 2/5.1CH

L/R Audio Formats

Analog Stereo 2CH

ESD Protection

Human body model — ±8kV (air-gap

discharge) & ±4kV (contact discharge)

Connections

Inputs

1x HDMI Type A [19-pin female]

1x Line In [3.5mm Stereo Mini-jack] 1x Optical In [S/PDIF]

Outputs

1x HDMI Type A [19-pin female]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

73.5mm [W] x 60.7mm [D] x 17mm [H]

Weight

122g

Power Supply

Input: AC100 - 240V 50/60Hz

Output: DC 5V/1A

(US/EU standards, CE/FCC/UL certified)



Power Consumption

1.25W

Operation Temperature

32 - 104°F / 0 - 40°C

Storage temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

The HDMI 18Gbps Audio Embedder can embed audio signals from digital optical or analog stereo Line audio to HDMI output. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

  • Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output
  • Optical audio supports LPCM 2CH, Dobly Digital 2/ 5.1CH, DTS 2/5.1CH
  • Analog audio supports PCM2.0
  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
  • Video resolutions up to 4K2K@50/60Hz (YUV444)
  • Supports HDMI High Bit Rate(HBR) audio pass through
  • 10bits HDR (High Dynamic Range) pass through
  • Supports CEC bypass

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18Gbps

Video Resolutions

up to 4K2K@50/60Hz(YUV4:4:4),4K2K@

30Hz,1080P@120Hz and 1080P3D@60Hz

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:0

Color Depth

10-bit, 12-bit

HDMI Audio Formats (Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1,

Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

Optical Audio

Formats

LPCM 2CH, Dolby Digital 2/5.1CH,

DTS 2/5.1CH

L/R Audio Formats

Analog Stereo 2CH

ESD Protection

Human body model — ±8kV (air-gap

discharge) & ±4kV (contact discharge)

Connections

Inputs

1x HDMI Type A [19-pin female]

1x Line In [3.5mm Stereo Mini-jack] 1x Optical In [S/PDIF]

Outputs

1x HDMI Type A [19-pin female]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

73.5mm [W] x 60.7mm [D] x 17mm [H]

Weight

122g

Power Supply

Input: AC100 - 240V 50/60Hz

Output: DC 5V/1A

(US/EU standards, CE/FCC/UL certified)



Power Consumption

1.25W

Operation Temperature

32 - 104°F / 0 - 40°C

Storage temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)
