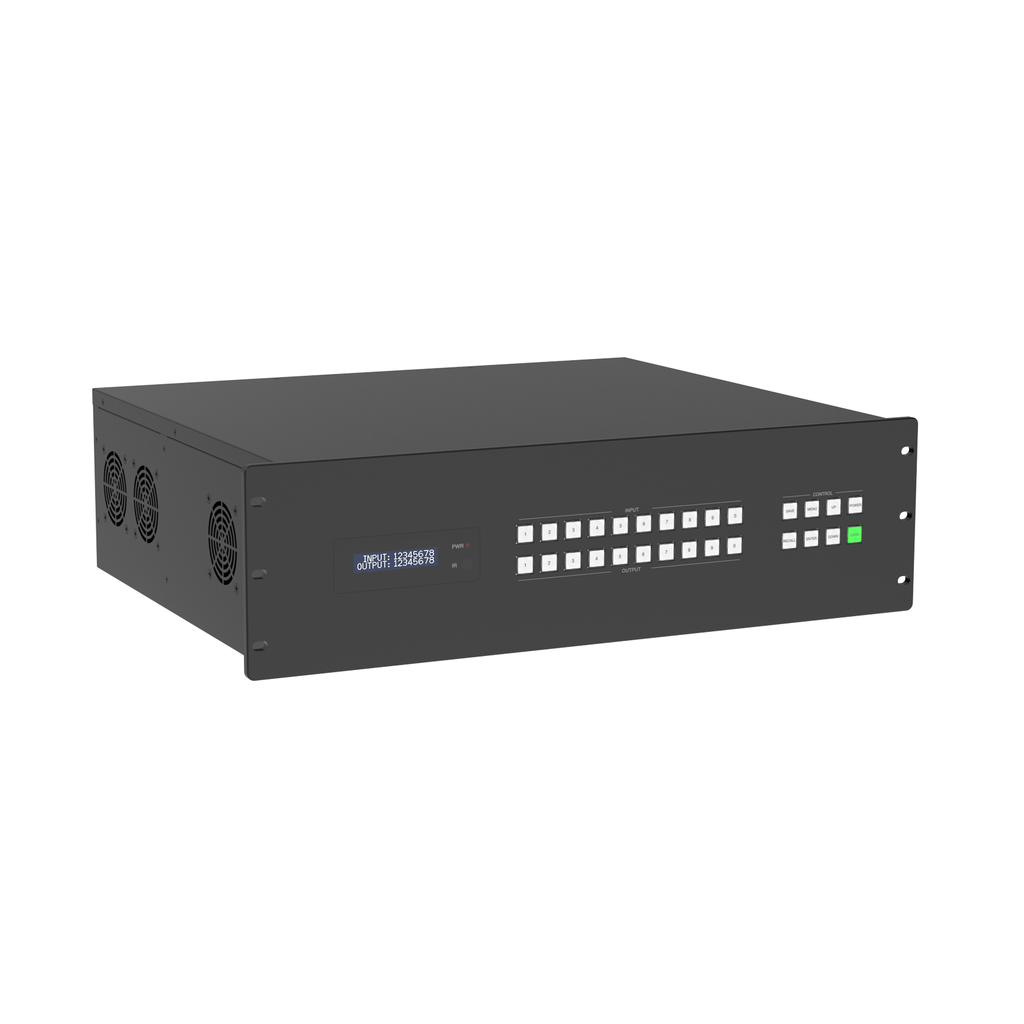

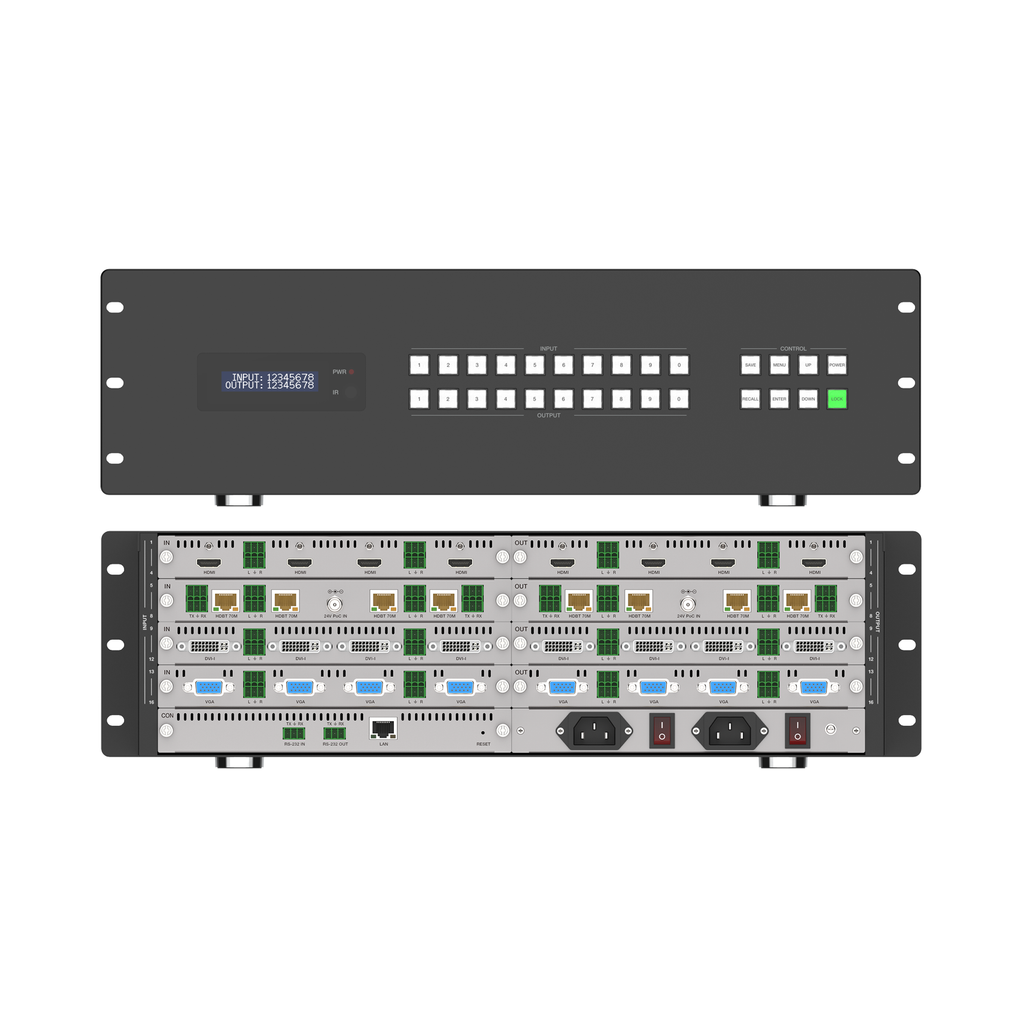

DVDO-Matrix-XX-C2 are high performance modular and customizable matrix switching systems including different chassis options (8x8, 16x16 & 36x36) as well as various 4-port input and output cards including HDMI, HDBaseT, Fiber or SDI.

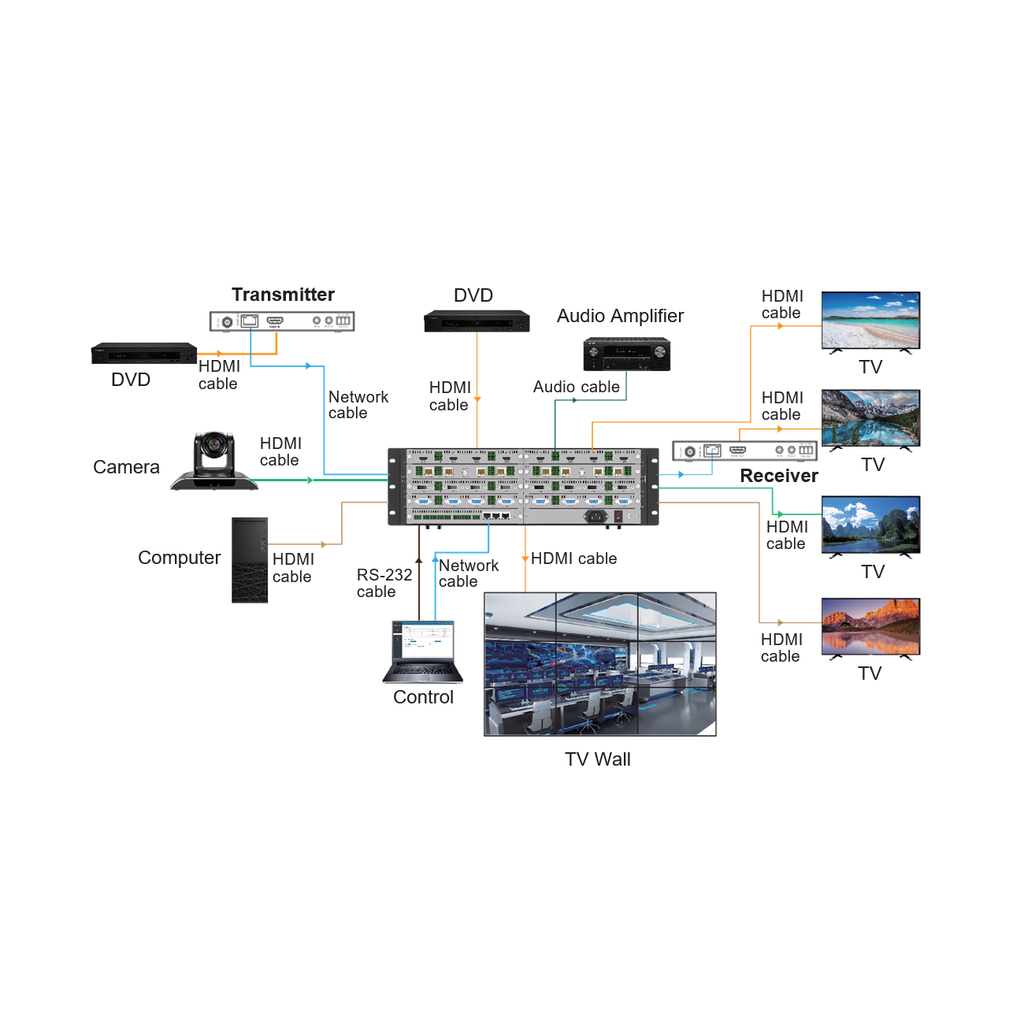

They allow the switching, routing and control of multiple local and remote source signals to multiple displays through in a single chassis.
They offer seamless switching, built-in scaling, advanced EDID management as well as video wall and can be controlled via LAN, RS-232, Web GUI, a PC software or the front panel buttons.
- HDMI 18Gbps video bandwidth, up to 4K60 RGB 4:4:4 24bit as specified in HDMI 2.0b
- Supports 8~36 inputs and 8~36 outputs with 8x8, 16x16 & 36x36 chassis options
- 4K 4-port input & output cards: HDMI, HDBaseT 70m, HDBaseT 150m, Fiber, 12G-SDI
- Maximum resolutions: 3840x2160@60Hz
- Seamless switching
- Built-in scaler with selectable output resolutions
- Video wall with any splicing mode from 8x8 to 36x36
- Analog audio embedding/de-embedding supporting LPCM 2.0CH
- Advanced EDID management (Internal EDID or copy from any output devices)
- Control via front panel buttons, IR, RS-232, TCP/IP, Web GUI or PC program
- PC software to control system and check real-time status of all inputs and outputs
- Redundant power supply
