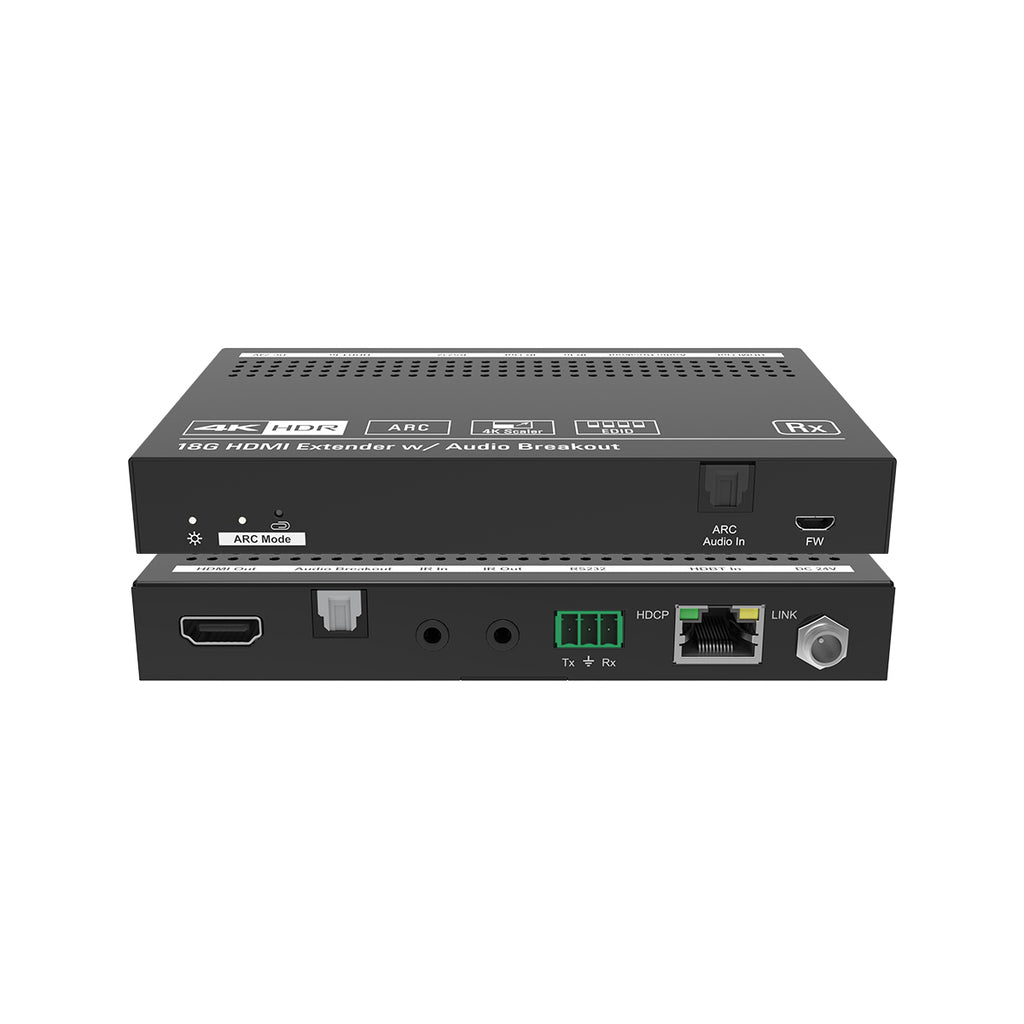

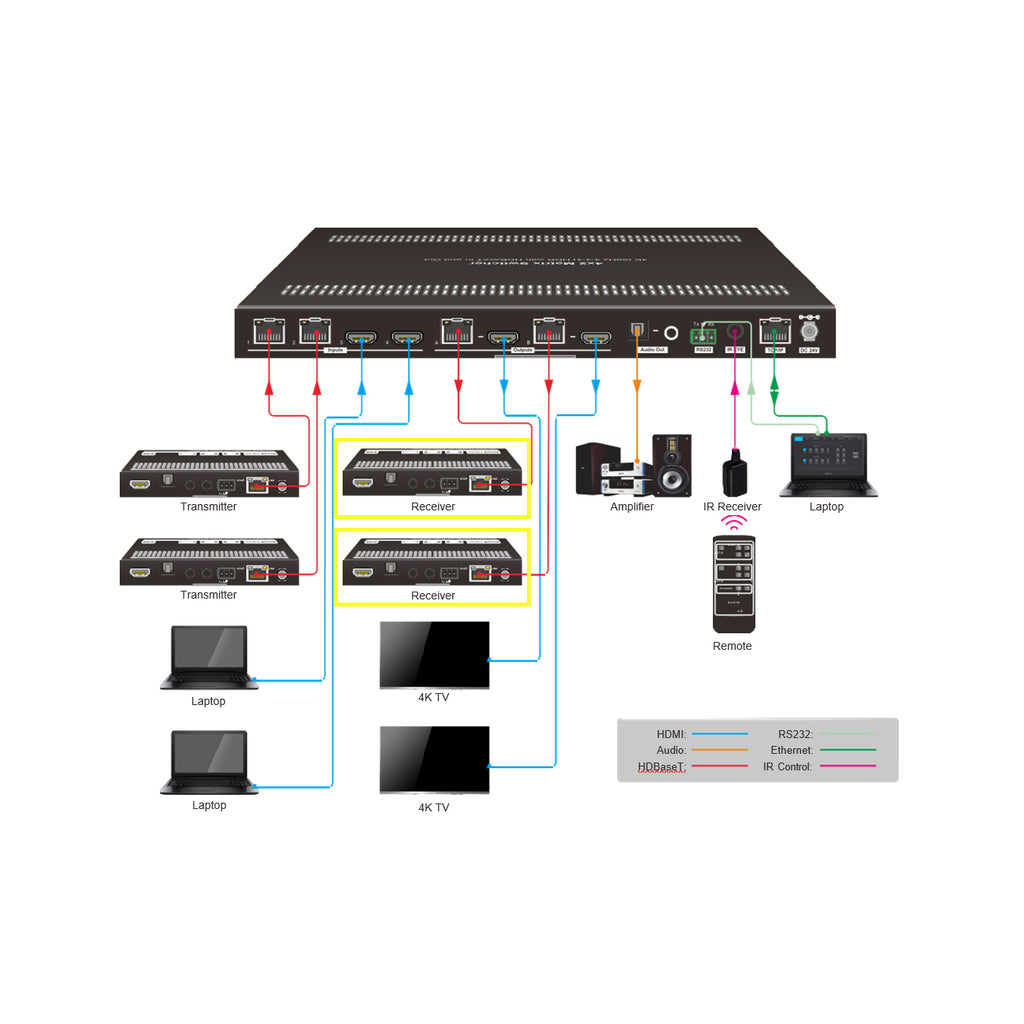

DVDO-Matrix-HDBT-Rx is an HDBaseT receiver that connects to an HDBaseT output of the DVDO-Matrix-42-HDBT 4x2 matrix switcher.
It can receive 1080p signals up from a distance up to 70m/230ft and 4K60 signals up to 40m/131ft via a single CATx cable.
It offers audio de-embedding with a separate S/PDIF Toslink audio output.
It supports PoC, bi-directional IR & RS232, HDR and CEC.
- HDMI 2.0, HDCP 2.2 and DVI 1.0 compliant
- Supports video resolutions up to 4K@60Hz 4:4:4 with 18Gbps bandwidth
- Maximum transmission distance: 70m/230ft for 1080p signals and 40m/131ft for 4K60 signals with CATx cable
- Audio de-embedding with separate S/PDIF Toslink audio output
- PoC (powered by DVDO-Matrix-42-HDBT)
- Bi-directional IR & RS232
- HDR 10
- CEC pass-through
