DVDO-CAT4K-70-CC is an HDMI extender that transmits signals up to 70m/230ft over CAT6/6a/7 cable, supporting resolutions up to 4K@60Hz.

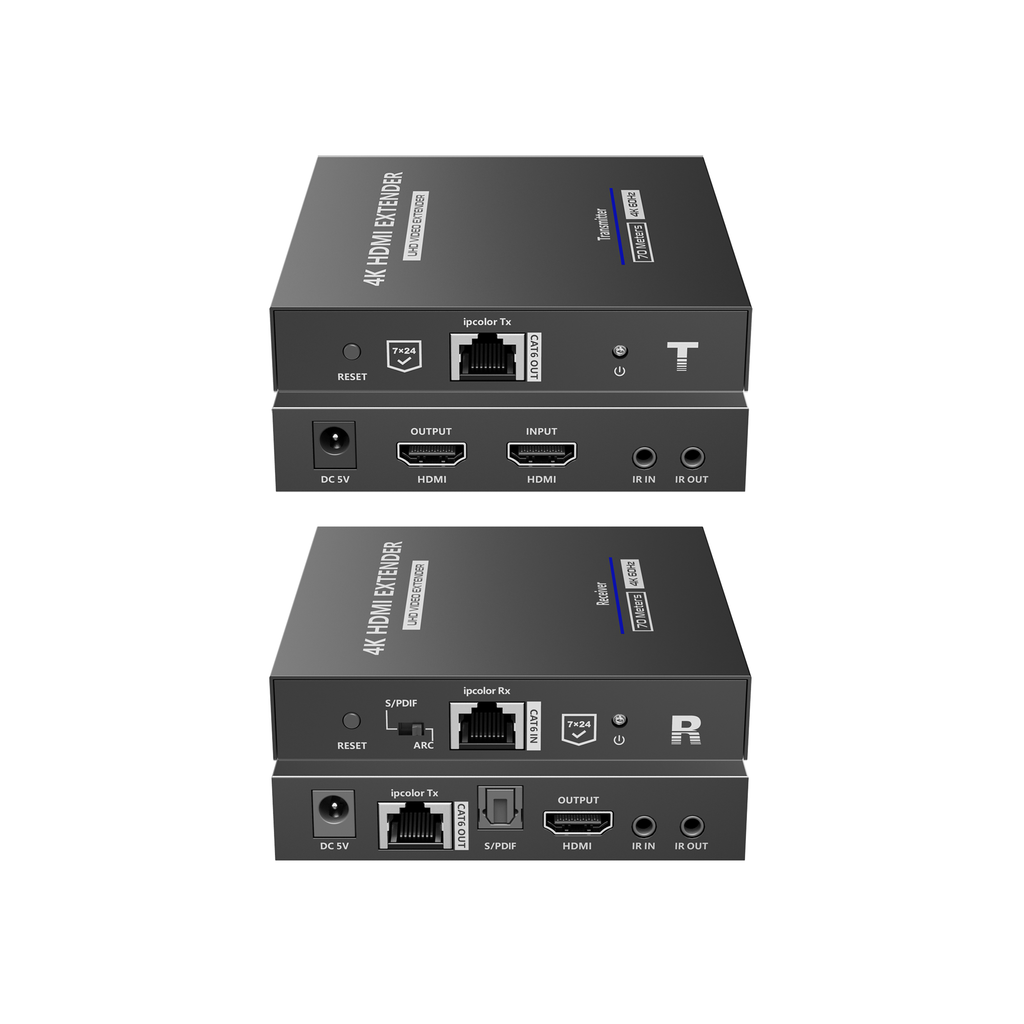

The transmitter features an HDMI loop-out for a local display.

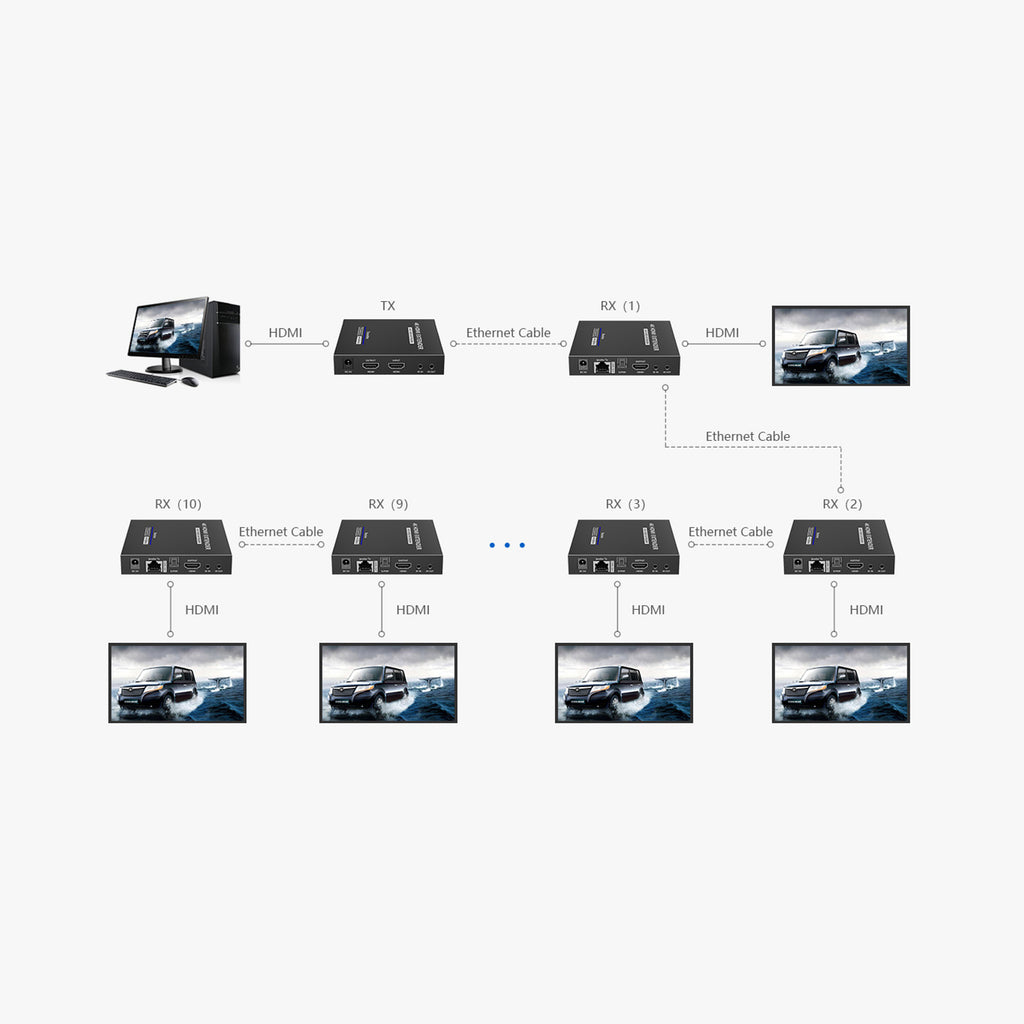

The receiver features a category loop-out for cascading up to 10 receivers (additional receivers sold separately, P/N DVDO-CAT4K-70-CC-Rx) and a dedicated S/PDIF audio de-embedding output.
The system supports EDID pass-through, bi-directional IR and automatic downscaling.
- HDMI 2.0 and HDCP 2.2 compliant
- Zero latency
- Supports video resolutions up to 4K@60Hz
- Maximum transmission distance: 230ft/70m with CAT6/6a/7 cable
- HDMI loop-out on transmitter
- Category loop-out on receiver, supports up to 10 receivers in cascade. Additional receivers sold separately (P/N # DVDO-CAT4K-70-CC-Rx)
- HDR10, EDID passthrough, ARC, downscaling auto adapts to display resolutions
- Bi-directional IR (20-60kHz)
- Audio de-embedding on receiver with separate S/PDIF output
- Compact design for easy and flexible installation
