DVDO-CAT4K-70-CC-Rx is a receiver designed to work with the DVDO-CAT4K-70-CC HDMI extender kit. It is used to extend 4K HDMI signals over a category cable.

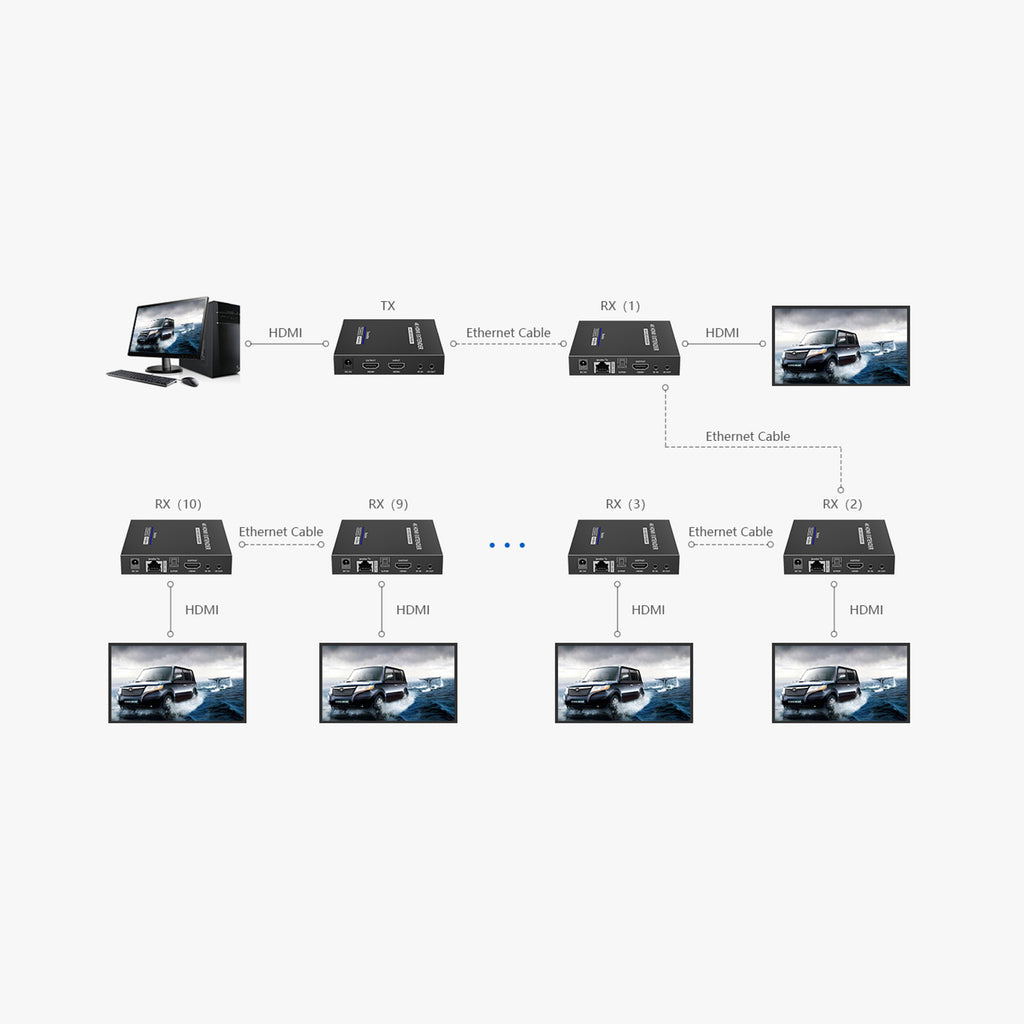

It features a category input, an HDMI output to connect to a local display and a category loop-out, enabling daisy-chaining of up to nine additional receivers.
The unit also features a S/PDIF output for audio de-embedding and supports EDID pass-through, bi-directional IR, and automatic downscaling.
- Additional receiver for DVDO-CAT4K-70-CC extender
- HDMI 2.0 and HDCP 2.2 compliant
- Zero latency
- Supports video resolutions up to 4K@60Hz
- Maximum transmission distance: 230ft/70m with CAT6/6a/7 cable
- Category loop-out, supports up to 10 receivers in cascade
- HDR10, EDID passthrough, ARC, downscaling auto adapts to display resolutions
- Bi-directional IR (20-60kHz)
- Audio de-embedding with separate S/PDIF output
- Compact design for easy and flexible installation
DVDO-CAT4K-70-CC-Rx is a receiver designed to work with the DVDO-CAT4K-70-CC HDMI extender kit. It is used to extend 4K HDMI signals over a category cable.
It features a category input, an HDMI output to connect to a local display and a category loop-out, enabling daisy-chaining of up to nine additional receivers.
The unit also features a S/PDIF output for audio de-embedding and supports EDID pass-through, bi-directional IR, and automatic downscaling.
- Additional receiver for DVDO-CAT4K-70-CC extender
- HDMI 2.0 and HDCP 2.2 compliant
- Zero latency
- Supports video resolutions up to 4K@60Hz
- Maximum transmission distance: 230ft/70m with CAT6/6a/7 cable
- Category loop-out, supports up to 10 receivers in cascade
- HDR10, EDID passthrough, ARC, downscaling auto adapts to display resolutions
- Bi-directional IR (20-60kHz)
- Audio de-embedding with separate S/PDIF output
- Compact design for easy and flexible installation
