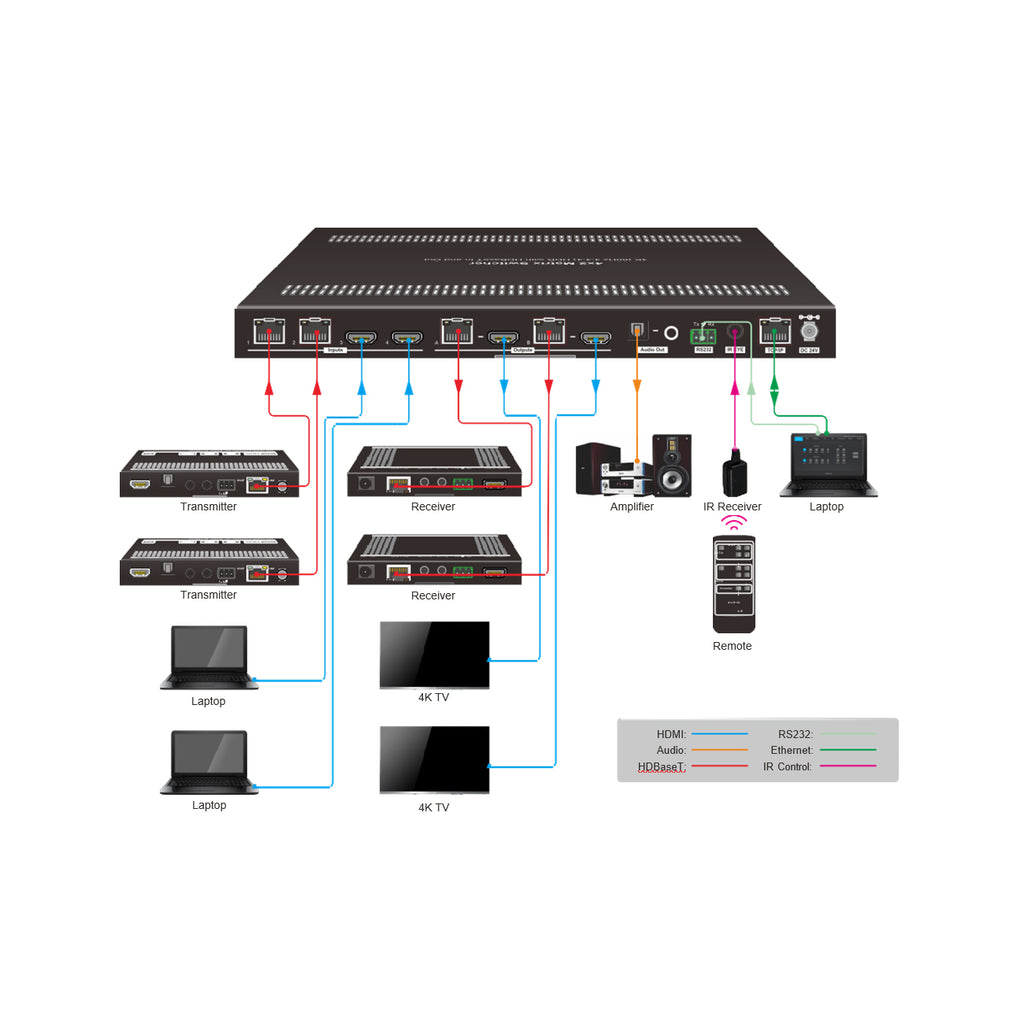

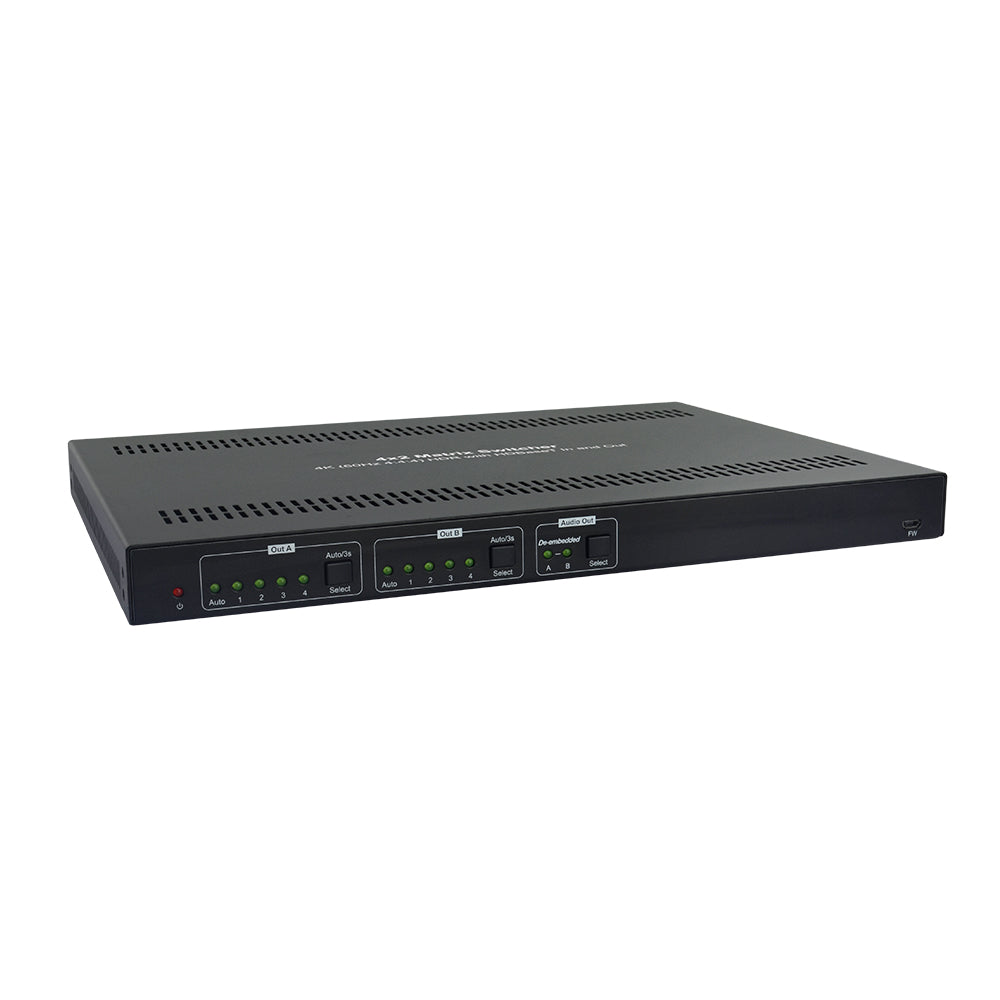

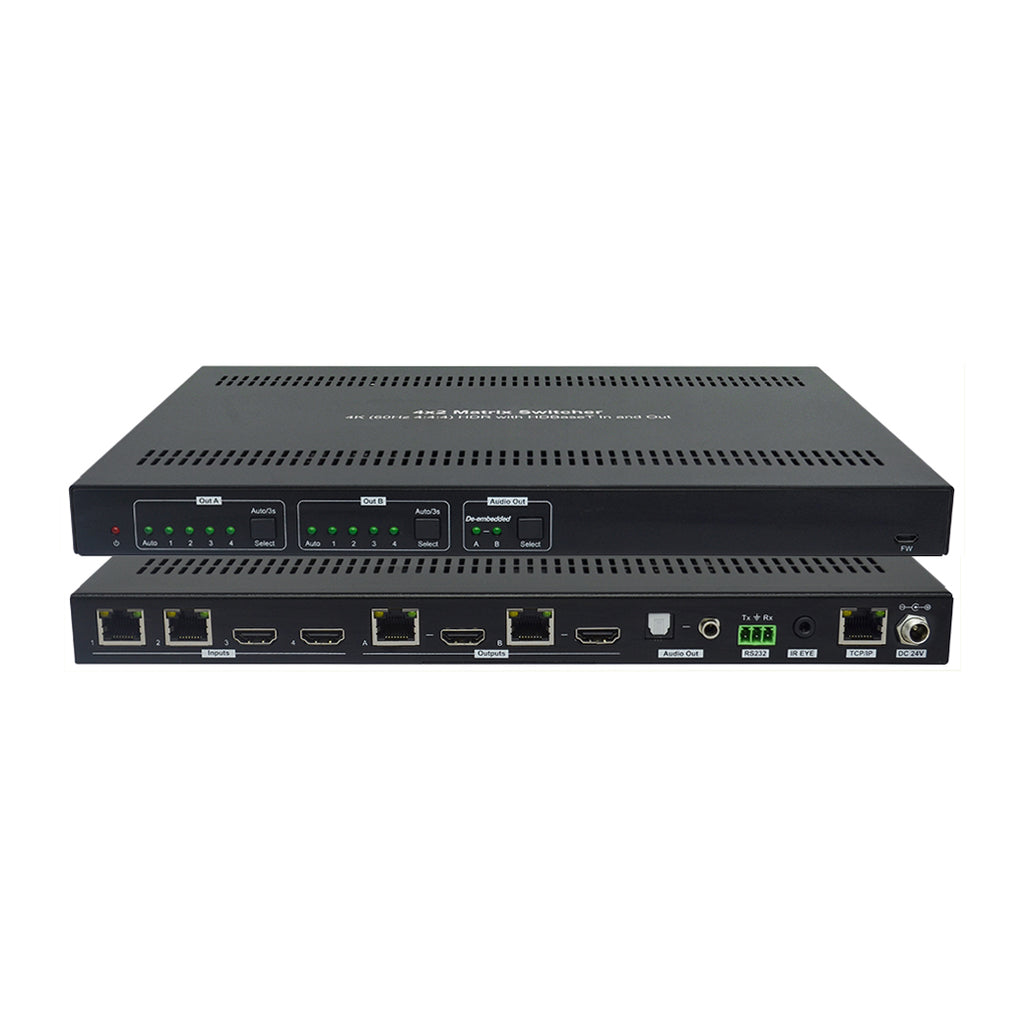

DVDO-Matrix-42-HDBT is a matrix switcher with two HDMI + two HDBaseT inputs and two HDMI with two mirrored HDBaseT outputs, allowing to route independently four HDMI sources up to four separate displays.
It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.
The HDBaseT inputs and outputs can transmit 1080p signals up to 70m and 4K signals up to 40m and support 48V PoC.
It features audio de-embedding with separate S/PDIF optical and analog L/R audio outputs.
It also supports HDR, 4K to 1080p downscaling as well as advanced EDID management.
The unit can be controlled via the front panel buttons, IR, RS232 or TCP/IP with an intuitive web GUI.
- HDMI 2.0, HDCP 2.2
- Video resolutions up to 4K@60Hz 4:4:4 18Gbps
- 2 HDMI + 2 HDBaseT inputs & 2 HDMI with 2 mirrored HDBaseT outputs
- Individual 4K -> 1080p downscaling for each output
- Auto-switching
- Audio de-embedding with separate S/PDIF optical & analog L/R audio outputs
- Supports HDR 10 & Dolby Vision
- Advanced EDID management
- Control via front panel buttons, IR, RS232 and IP with intuitive web GUI
- HDBaseT inputs and outputs support 48V PoC
- HDBaseT transmission distance: 70m (1080p) / 40m (4K)
- HDBaseT transmitter (DVDO-Matrix-HDBT-Tx) and receiver (DVDO-Matrix-HDBT-Rx) to be ordered separately
